Installing Online Help CD/DVD Onto System

note:

The process for loading the Online Help (Operator Manual) onto the system disk.

  1. Verify that you have the proper Operator Manual CD or DVD. Must match software release and field strength (1.5T or 3.0T).

  2. Go to the Service Desktop and start the Common Service Browser if it is not already running. Select Configure tab, then select Guided Install, FE mode. Then Click here to start this tool. The password is operator.

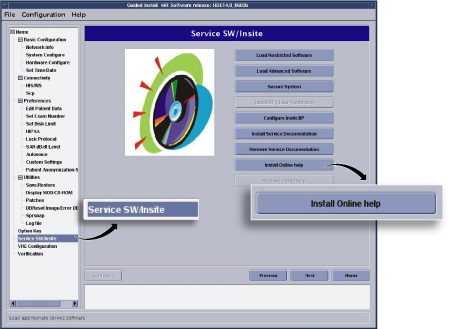

  3. Select Service SW/Insite. Insert the Online Help CD/DVD into the CD/DVD ROM drive in the PC. Click on Install Online Help Button. See Figure 1

    Figure 1. Loading Online Help

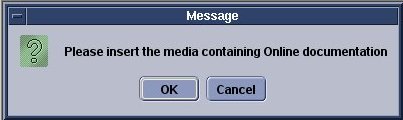

  4. Click OK for message.

    Figure 2.

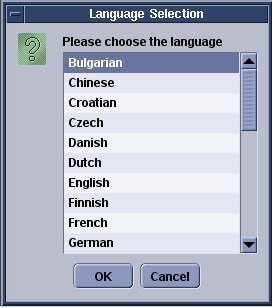

  5. Select the language of Online Help and click [OK].

    Figure 3.

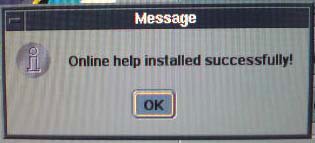

  6. Verify that the following message comes up. Then, click [OK].

    Figure 4.

  7. After the installation of the Online help, remove the Online help DVD from PC.

  8. If you wish to remove the Online help, click on Remove Online help button.
