I/O Status

1 Diagnostic Link

Diagnostics >> System Function >> Patient Handling >> PHPS Functional Diagnostic

Diagnostics >> Hardware Location >> System Cabinet >> PHPS Functional Diagnostic

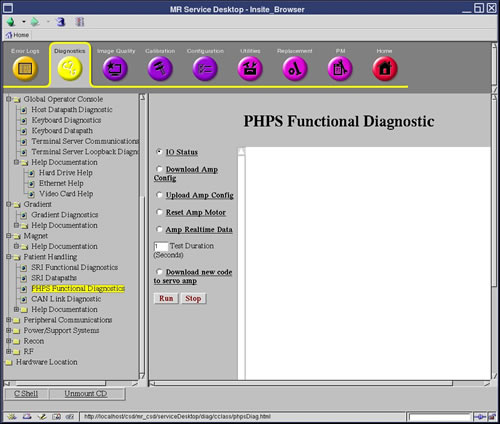

Figure 1. PHPS Functional Diagnostic

2 Purpose

The test will check the status of: Table DC Supply, Bore Light, Bore Vent, Alignment Light, Table Motor, Motor Amplifier, 8 Volt Supply, 3.3 Volt Supply, 5 Volt Supply.

3 Components Tested

The PWM is part of the table motion control function.

4 Requirements

None

5 Block Diagram

None

6 Test Sequence

  1. Select test.

  2. Click [Run] .

7 Expected Results

  • Black - Normal Result

  • Red - Error

note:

The Power Supplies will not come up as Red for failures.

8 Links

None
