HP HC240 monitor calibration

See the following illustration and table for information on the control locations and functions.

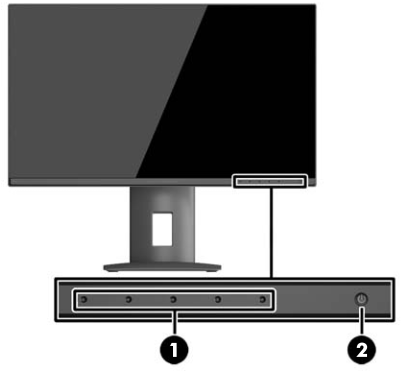

1 Front panel controls

Figure 1. Front panel controls

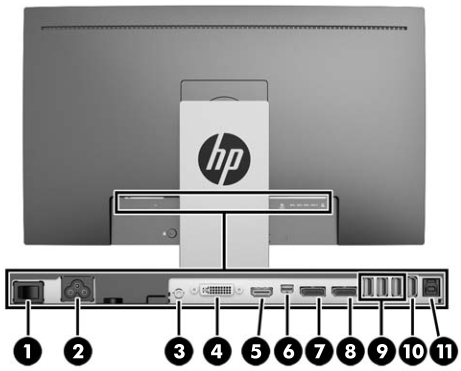

2 Rear components

Figure 2. Rear components

3 Display options

  1. Press the Menu button on the front panel of the display to open the On-Screen Display (OSD) menu.

    Use the OSD to adjust the display settings screen image based on your preferences. You can access and make adjustments in the OSD using the buttons on the display’s front panel.

    To access the OSD and make adjustments, do the following:

    1. If the display is not already on, press the Power button to turn on the display.

    2. To access the OSD menu, press one of the five front bezel functional buttons (except Power button) to activate the buttons, and then press the Menu button to open the OSD.

    3. Use the five function buttons to navigate, select, and adjust the menu choices. The button labels are variable depending on the menu or sub-menu that is active.

    The following table lists the menu selections in the main menu

  2. Navigate to and highlight the Color menu, and then select the DICOM D75 color setting.

    note:

    DICOM means Digital Imaging and Communication in Medicine. DICOM color selection will disable Dynamic Contrast Ratio (DCR). Sets the screen colors to Digital Imaging and Communications in Medicine Part 14 compliant standards. White point D75.

  3. To change the color setting to another preset or custom setting:

    1. Press the Menu button on the front panel of the display to open the OSD menu.

    2. Navigate and highlight the Color menu and select the desired color setting.

    3. Click OK, then click Save and Return.

  4. Auto-Sleep mode

    1. The display supports an OSD option called Auto-Sleep mode that allows you to enable or disable a reduced power state for the display. When Auto-Sleep mode is enabled (enabled by default), the display will enter a reduced power state when the host PC signals Low Power mode (absence of either horizontal or vertical sync signal).

    2. Upon entering this Reduced Power State Sleep mode, the display screen is blanked, the backlight is turned off and the power LED indicator turns amber. The display draws less than 0.5W of power when in this Reduced Power mode. The display will wake from the Sleep mode when the host PC sends an active signal to the display (for example, if you activate the mouse or keyboard).

4 Finalization

Do a scan to make sure the system is working properly.
