Guided Install Options

note:

For item with default selection as blank, must be configured per hardware configuration list below/above. The additional selection choices are other 1.5T serial signa products. Incorrect selection of the hardware configuration would result in prohibition of proceeding.

1 Under [System Configure]

Date Format Enter the date format to be used by the customer

Weight Unit Enter either Pounds or Kilograms

Keyboard Enter keyboard that is used for specific country

Language Enter language that will be used by customer

Video Card Not used at the introduction

Display type Enter the video mointor that will be used for the system

Enable HO Shim Must be No, as High Order Shim is not available

Legacy Image Type Should be set to [Yes]

2 Under [Hardware Configure]

Product Name 1.5T, 60cm, SIGNATM Creator / Explorer

Field Strength must be 1.5T

Gradient type must be 8919(XFD)

Magnet Serial Number Enter actual magnet serial number.

Table Limit is default, cannot change

Line Frequency Set to either 50 or 60 hz

ISO Vector Z 9600 Magnet Enclosure

Magnet Enclosure shall select “SIGNA Creator/Explorer”

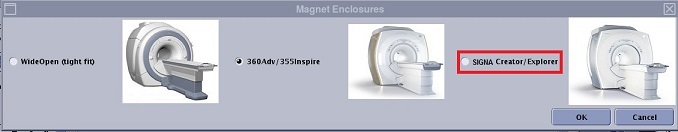

Figure 1. Hardware Selection

RF-Systems Cabinet(RFS) Select YES

Spectro RF Amp type Select [none]

note:

Table configuration selected by checking table part number

  • 5777777 for Fixed Table 160.0 kg weight limitation

  • 5777777–2 for Fixed Table 200.0 kg weight limitation

Grad Processor type Select GP4
