Guided Install Options

1 Under [System Configure]

Date Format Enter the date format to be used by the customer

Weight Unit Enter either Pounds or Kilograms

Keyboard Enter keyboard that is used for specific country

Language Enter language that will be used by customer

Video Card Not used at the introduction

Display type Enter the video mointor that will be used for the system

Enable HO Shim Must be No, as High Order Shim is not available

Legacy Image Type Should be set to [Yes]

2 Under [Hardware Configure]

Field Strength must be 1.5T

Package Name must be XFD SR120

Gradient type must be 8919(XFD)

Resonance Module must be BRM

Magnet Serial Number Enter actual magnet serial number, first letter is R

Table Limit is default, cannot change

Line Frequency Set to either 50 or 60 hz

RF Amp Type must be 1.5T CSA RF amp

Governing Body Select proper governing body for the customer site; usually IEC (or other selection if required by local regulation). For Japan, select ‘MHLW-JIS’.

ISO Vector Z 9600 MR355/MR360 Magnet Enclosure

Magnet Enclosure shall select “360Adv/355Inspire”

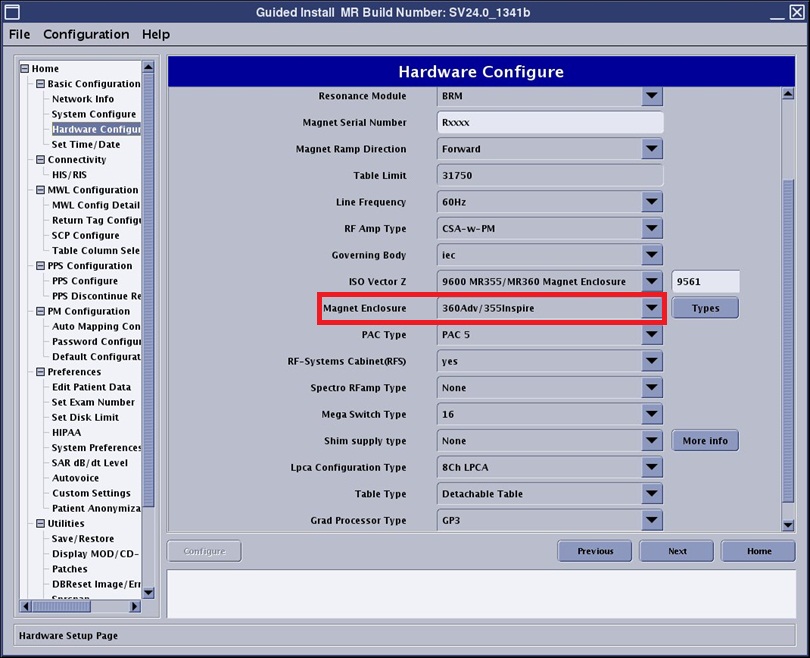

Figure 1. Hardware Selection

PAC type Select the proper PAC

RF-Systems Cabinet(RFS) Select YES

Spectro RF Amp type Select [none]

LPCA configuration type Select 8/16 ch LPCA
