Fixed Table

For Patient Table Straps and Pads FRU, see Straps and Pads for Patient Table

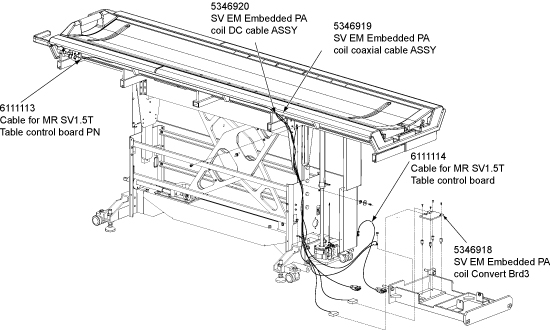

Figure 1. Fixed Table FRU 1

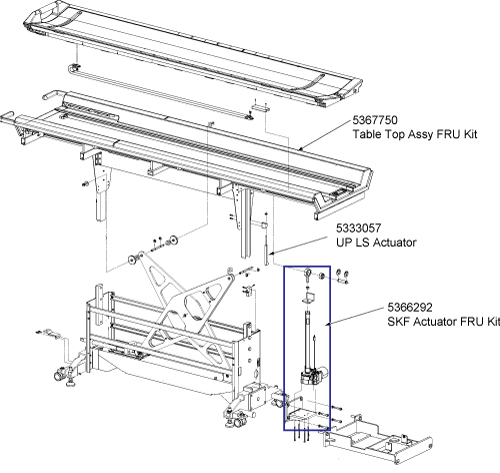

Figure 2. Fixed Table FRU 2

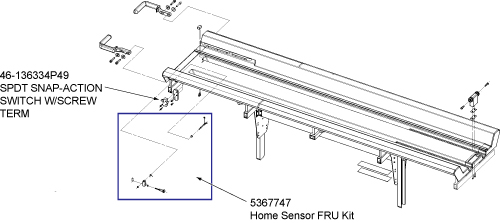

Figure 3. Fixed Table FRU 3

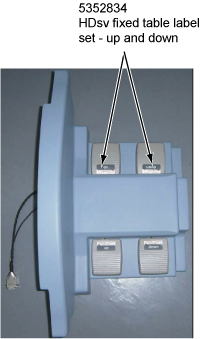

Figure 4. Fixed Table FRU 5

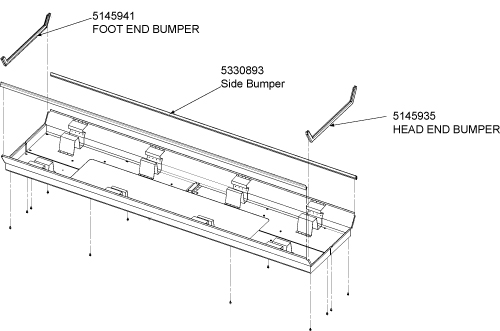

Figure 5.

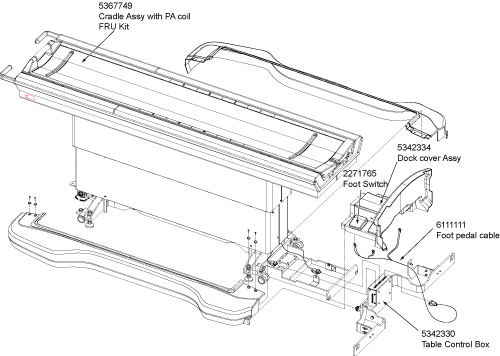

Figure 6. Fixed Table FRU 6
