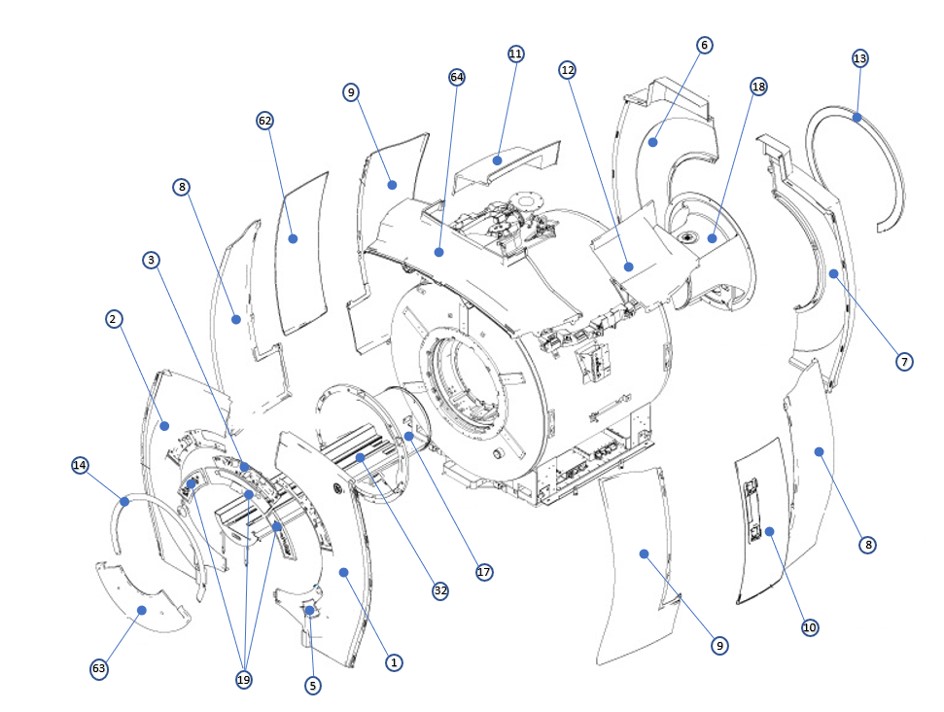

Enclosure and Gradient Assembly

Figure 1. Enclosure and Gradient Assembly

1 Turtle Bracket Asm Front BRM 1.5T

2 Turtle Bracket Asm Rear BRM 1.5T

3 Front End Bell BRM Assembly

4 Rear End Bell BRM Assembly

5 SV front bridge assy

6 Display / Control Panel

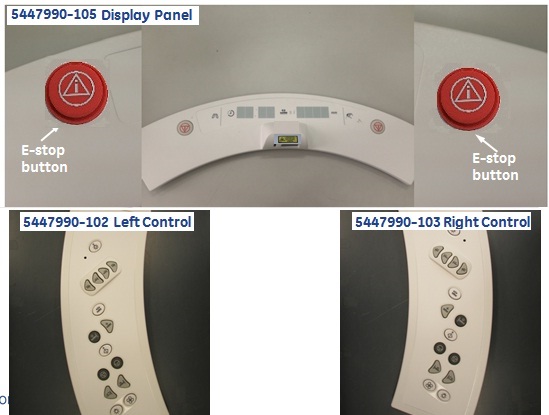

Figure 2. Display / Control Panel

7 CABLE ASM,COLD HEAD CONTROL,LCC

8 1.5T BRM-F Gradient Coil, GEHC N9

8.1 Gradient Cable Clamp Block Kit

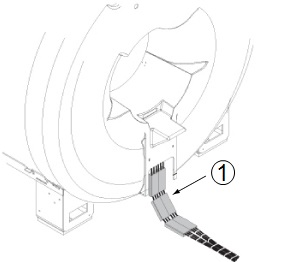

Figure 3. Gradient Cable Clamp Block Kit

9 Platform Asm, PAC and SRI Mounting

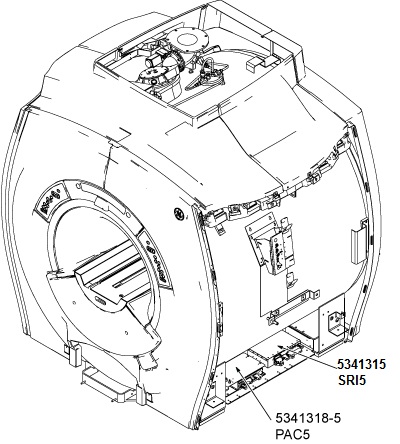

Figure 4. Platform Asm, PAC and SRI Mounting

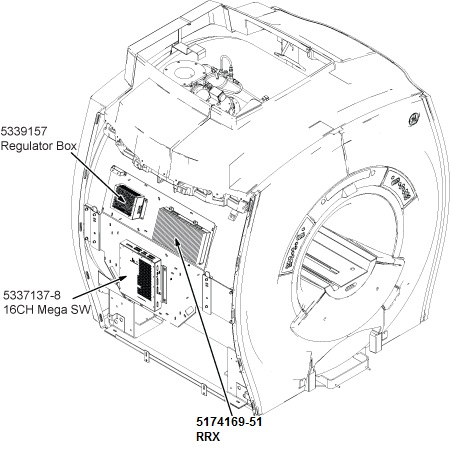

10 Magnet side KIT

Figure 5. Magnet side KIT

11 Enclosure Cable Kit

11.1 (829) MS1-FJ2 TO PP1-J48
