Enclosure and Gradient Assembly

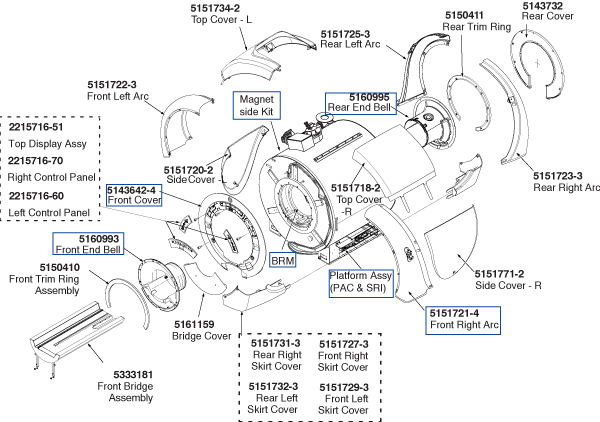

Figure 1. Enclosure and Gradient Assembly

Front End Bell BRM Assembly Front Cover Assembly, Blue Magnet side KIT Rear End Bell BRM Assembly 1.5T BRM-F Gradient Coil, GEHC N9 HDe Platform Asm, PAC and SRI Mounting SV Front Right Arc Cover Assembly

1 Turtle Bracket Asm Front BRM 1.5T

2 SV Arc Cover Collector

2.1 SV Front Right Arc Cover Assembly

2.2 Vibrant Front Left Arc Cover Assembly

3 Turtle Bracket Asm Rear BRM 1.5T

4 SV Top and Side Cover Collector, Right

5 SV Font and Rear Cover Collector

5.1 Front Cover Assembly, Blue

6 Front End Bell BRM Assembly

7 Rear End Bell BRM Assembly

8 SV front bridge assy

9 HD2 Center Display Panel With Overlay

10 CABLE ASM,COLD HEAD CONTROL,LCC

11 1.5T BRM-F Gradient Coil, GEHC N9

11.1

Figure 2.

12 Platform Asm, PAC and SRI Mounting

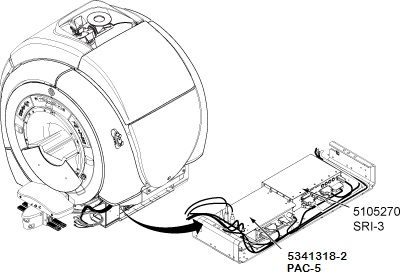

Figure 3. Platform Asm, PAC and SRI Mounting

13 Magnet side KIT

Figure 4. Magnet side KIT

14 Enclosure Cable Kit

14.1 (829) MS1-FJ2 TO PP1-J48
