Coolant Check of MCS and 8kw or 4kw LCS

When the red float reaches at the lower limit, the water sensor works and message will be displayed on the console.

  1. Check that the coolant above the lower limit. If the coolant level is close to the lower limit, add coolant.

  2. Check that the coolant is not dirty. If necessary , replace coolant.

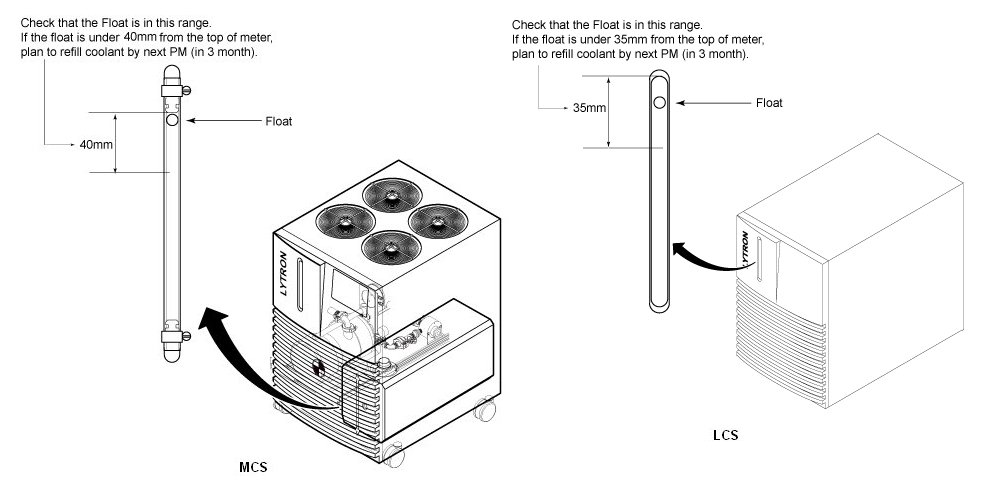

Figure 1. Water sensor operation of MCS and 8kw or 4kwLCS

note:

8kw and 4kw LCS have the same appearance, so they are illustrated in the same illustration
