1.5T Signa HD 8CH CTL Miscellaneous Items

1 Product Identification and Shipping List

To identify the 8-Channel CTL Coil, refer to the coil label. See Figure 1

Figure 1. coil label

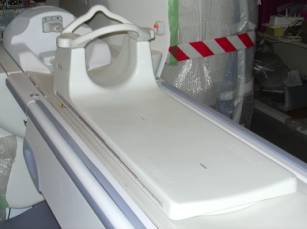

Figure 2 shows a picture of the 8-Channel CTL Coil.

Figure 2. 8-Channel CTL Coil.

2 Compatibility

The 8-Channel CTL coil is compatible with the Signa HDe and HDx 1.5T system and requires 14.0 or greater software.

3 Related Documentation

Signa HDe 1.5T Class A Service Methods CDROM, GE Part Number 5144306.

Operator’s Guide, GE Part Number 2415427

4 Environmental Requirements

Storage Requirements

Coil should be stored in the scanner room.

Dimensions

43.3” L x 16.1” W x 13.6” H (110.0 cm x 41.0 cm x 34.5 cm)

Weight

20 lbs. (9.1 kg)
