1 Product Identification and Shipping List
HNS Rev 02 Coil:
To identify the 1.5T Head,
Neck and Spine Coil, refer to the coil labels in Figure 1.
note:
Each of the coils (5)
subcomponents contains it own label.

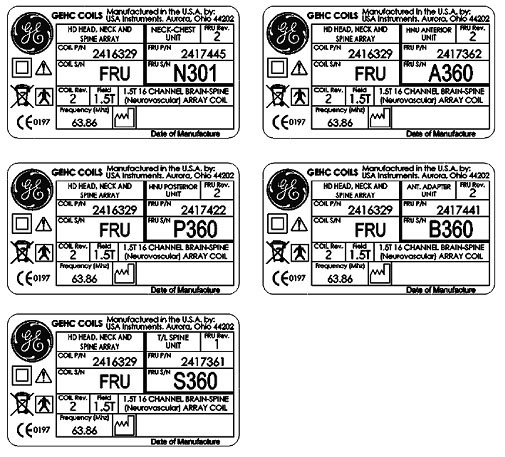

Figure 1. Coil Labels

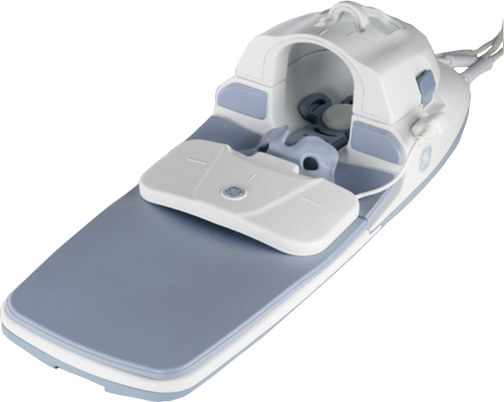

Figure 2. The 1.5T Head Neck Spine (HNS) Coil
Shipping Contents
and Packaging List: 3-Connector Coil for Upgrade System
Shipping Contents
and Packaging List : 2-Connector Coil for Forward Production System
HNS Rev 03 Coil

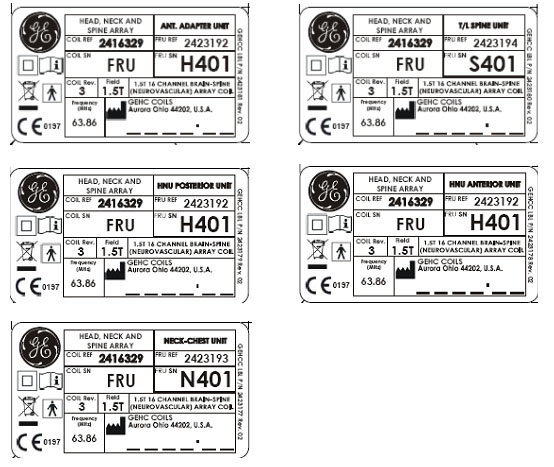

Figure 3. Coil Labels
Figure 4. 1.5T Head Neck Spine (HNS) Coil
Shipping Contents
and Packaging List: 3-Connector Coil for Upgrade System
Shipping Contents
and Packaging List: 2-Connector Coil for Forward Production System
2 Related Documentation
Operator’s Guide, GE
P/N 2417746 for HNS Rev 02 coil and 2423588-500 for HNS Rev 03 coil.
3 Environmental Requirements
Storage Requirements: Coil should be
stored in the scanner room.
