1.5T HD 8 Channel Neurovascular Array Introduction

This service manual is for the 1.5T HD 8 Channel Neurovascular Array by Invivo catalog number M3335M.

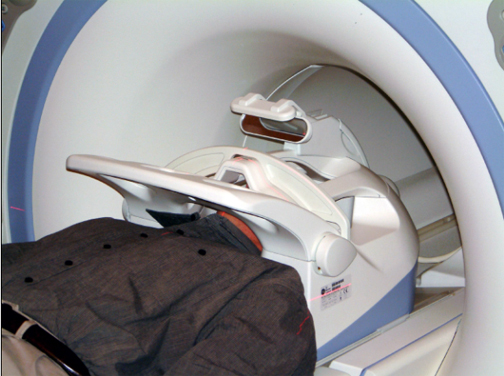

Figure 1. 1.5T HD 8 Channel Neurovascular Array

1 Compatibility

This coil is compatible with the following hardware configurations:

  • Signa HDx (Version 14.X)

  • Signa HDe (Version 14.X, M4 SP1 and later)

2 Related Documentation

1.5T HD 8 Channel Neurovascular Array Operator’s Manual, 5147134-4

3 Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10°C to +40°C.

  • Relative humidity range of 10% To 90%, non-condensing.

  • Atmospheric pressure range of 500 hPa TO 1060 hPa.

To store the coil, a storage space of 45.7 cm/18.0 in (width) x 72.4 cm/28.5 in (depth) x 42.7 cm/16.8 in (height) is required.

Dimensions

Weight
