1.5T HD 8 Channel High Res Brain Array Introduction

1 Product Identification and Shipping List

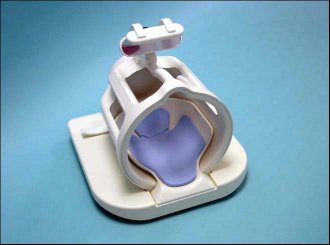

This service manual is for the 1.5T HD 8 Channel High Res Brain Array. (SeeFigure 1)

Table 1. Shipping List
Description	GE Part #	Invivo #	Qty
1.5T HD 8 Channel High Res Brain Array	5306772-2	110045	1
Phantom Positioner	2317112-3	102558	1
Operator Manual	5306772-4	500287	1
Thick Head Pad	2317112-9	102985	1
Thin Head Pad	2317112-10	102984	1
Spacer Pad	2317112-7	101622	1
Wedge Pad	2317115-8	101407	1
MSDS, Nickel Chloride Phantom Solution	5273235-10	109111	2

2 Compatibility

This coil is compatible with the following hardware configurations:

Signa HDe (Version 15.X and above.)

3 Related Documentation

1.5T HD 8 Channel High Res Brain Array Operator’s Manual, 5306772-4

4 Environmental Requirements

This equipment must be stored under the following conditions:

Ambient temperature range of +10°C to +40°C.
Relative humidity range of 10% To 90%, non-condensing.
Atmospheric pressure range of 500 hPa TO 1060 hPa.

To store the coil and baseplate, a storage space of greater than 40.4 cm/15.9 inch (width) x 30.6 cm/12.0 inch (length) x 34.1 cm/13.5 inch (height) is required.

Table 2. Dimensions (Width x Length x Depth)
Coil:	417.6 mm x 393.4 mm x 406.4 mm	(16.44 in x 15.49 in x 16.00 in)
Phantom Positioner:	225.6 mm x 228.6 mm x 23.9 mm	(8.88 in x 9.00 in x 0.94 in)

See the images of more details of the dimensions of 1.5T HD 8Ch Foot Ankle Coil below:

Coil :	7.20 Kg	(16.0 lb)
Phantom:	2.83 Kg	(6.25 lb)
Phantom Positioner:	0.45 Kg	(1.0 lb)
