1.5T HD 8-Channel Foot Ankle Coil Introduction

1 Product Identification and Shipping List

Identify the 1.5T HD 8-Channel Foot Ankle Coil by the coil label.

Figure 1. Coil Label

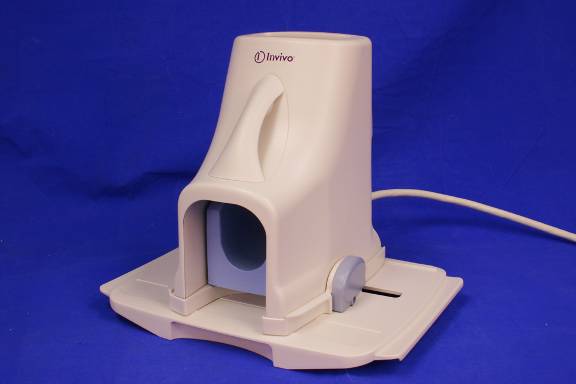

The 1.5T HD 8-Channel Foot Ankle Coil (M3340CD) by Invivo is shown below.

Figure 2. Invivo 1.5T HD 8-Channel Foot Ankle Coil

This table provides a the list of items shipped with the 1.5T HD 8-Channel Foot Ankle Coil.

note:

Coils do not ship with phantoms. Phantoms come in a unified phantom set with the MR system.

2 Related Documentation

1.5T HD 8-Channel Foot Ankle Coil Operator Manual, Direction 5308342-4.

3 Environmental Requirements

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10° to +40°C.

  • Relative humidity range of 10% to 90%, noncondensing.

  • Atmospheric pressure range of 500 to 1,060 hPa.

Storage Requirements: To store the coil and baseplate, a storage space greater than 40.4 cm (width) x 30.6 cm (length) x 34.1 cm (height), 15.9 in. x 12.0 in. x 13.5 in. is required.

The images below show more detailed dimensions of the 1.5T HD 8-Channel Foot Ankle Coil.

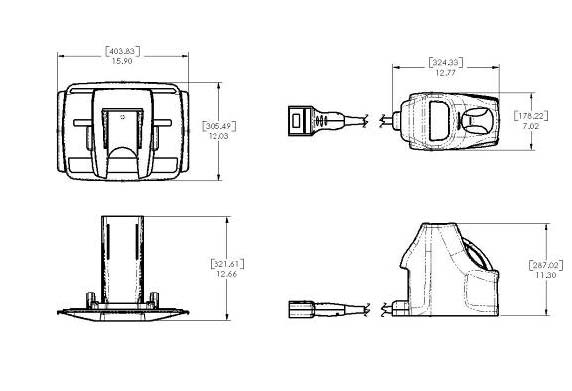

Figure 3. Dimensions 1

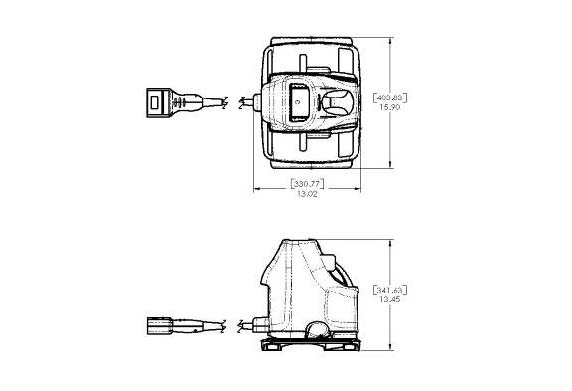

Figure 4. Dimensions 2

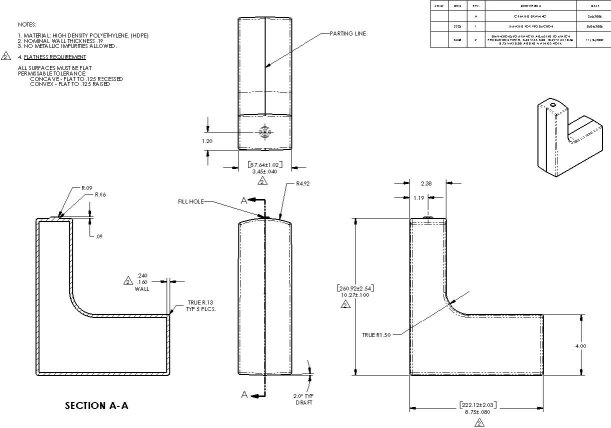

Figure 5. Dimensions 3
