1.5T 8-Channel Cardiac Coil Introduction
This document describes the HD 8-Channel Cardiac Coil made by GE/USAI, Catalog Number M3335MD.
1 Product Identification and Shipping List
To identify the 8-Channel Cardiac Coil, refer to the coil label in Figure 1).
Figure 1. Coil Label

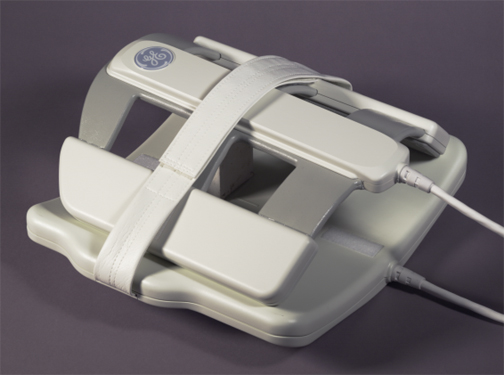

Figure 2 shows a picture of the 8-Channel Cardiac Coil.
Figure 2. 8-Channel Cardiac Coil
2 Related Documentation
Operator Guide, Direction 2417404
3 Environmental Requirements
Storage Requirements: Coil should be stored in the scanner room.
Dimensions: 19.4 in. (L) x 16.5 in. (W) x 4.7 in. (H), 49.4 cm x 42.0 cm x 11.9 cm
Weight: 12 lbs (5.4 kg)
