To identify the 12-Channel Single Connector HDx/HDxt or the
12-Channel P-Connector MR450/MR450w Body Array Coil, refer to the
coil label.
Figure 1. 12-Channel Single Connector HDx/HDxt and P-Connector MR450/450w
Body Coil Label
To identify the 12-Channel Dual Connector HDx/HDxt Body Array
Coil, refer to the coil label.
Figure 2. 12-Channel Dual Connector HDx/HDxt Body Coil Label
The anterior and posterior of the 12-Channel Body Array Coil
is the same for the HDx, HDxt, MR450, and MR450w systems. The only
difference is the system end connector. The HDx system uses a Hypertronics
Connector and the MR450/MR450w systems use a P-Connector.

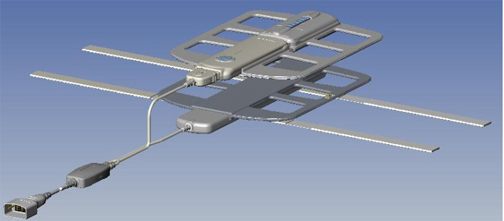

The figure below shows the 12-Channel HDx/HDxt Single Connector
Body Array Coil.
Figure 3. 12-Channel HDx/HDxt Single Connector Body Array Coil

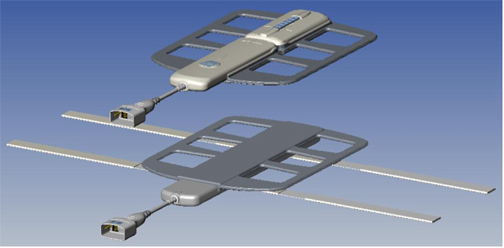

The figure below shows the 12-Channel HDx/HDxt Dual Connector
Body Array Coil.
Figure 4. 12-Channel HDx/HDxt Dual Connector Body Array Coil

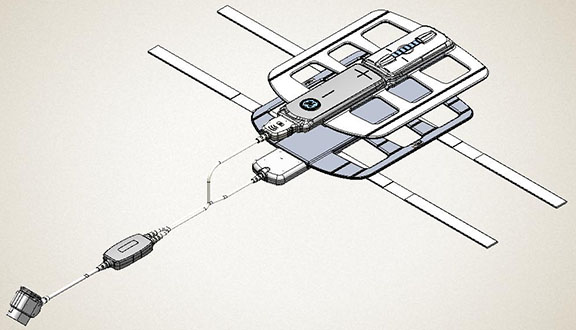

The figure below shows the 12-Channel MR450/450w P-Connector
Body Array Coil
Figure 5. 12-Channel MR450/450w P-Connector Body Array Coil
2 Related Documentation
Operator Guide CD PKT, GE PN 2422149-500
3 Environmental Requirements
Storage Requirements: Store the coil
in the scanner room.
Dimensions: 21.0 inch (L) x 30.5 inch
(W) x 2.2 inch (H), 53.5 cm x 77.4 cm x 5.7 cm
