Skirt cover removal and installation

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	5 minutes	Not Applicable

Table 1. Safety

Warning

Strong magnetic field

Ferrous materials can become dangerous projectiles in the presence of the magnetic field that the magnet produces.

Do not bring any ferrous tools or equipment into the magnet room.


Required conditions
Condition	Reference	Effectivity
Rear pedestal side cover has been removed (rear skirt cover only).	-	-
Side cover has been removed for the MR450w.	-	-

Remove the side cover (see Side Cover Removal and Installation).
The skirt covers are held into place using poppers and screws. There are two screws and one popper securing each skirt cover to the magnet. Unscrew the screws from the skirt cover that is being removed.

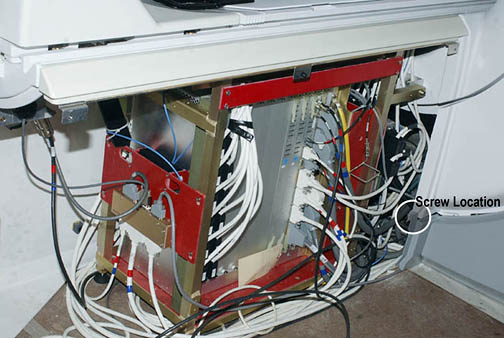

Figure 1. Screw location - front cover

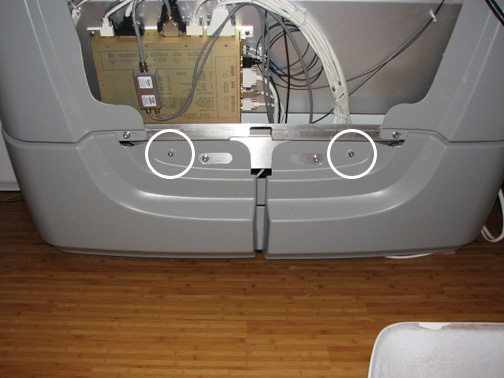

Figure 2. Screw locations - side cover

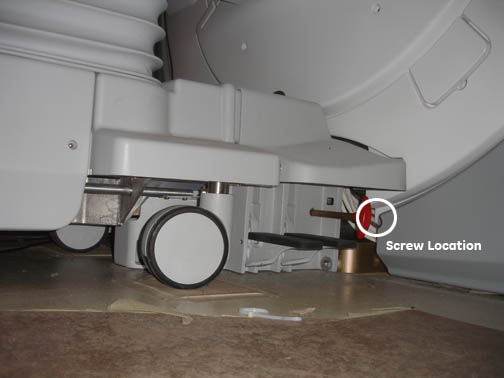

Figure 3. Screw location - rear cover
To remove a skirt cover simply slide it towards the front (or, in the case of the back covers, to the rear) of the magnet (see Figure 4).

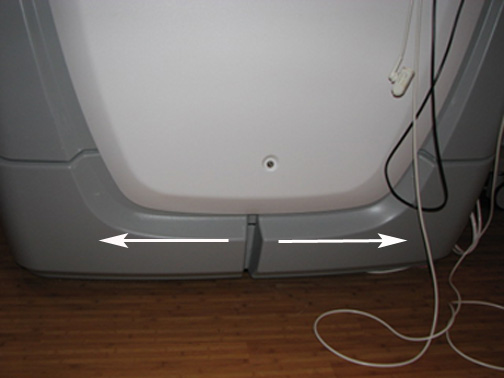

Figure 4. Removing skirt covers

Note: The rear pedestal cover has to be removed before removing the rear skirt cover.

Align fastener on skirt cover and slide cover towards the center of the magnet.
Align tabs so they interlock with the tabs on the adjoining skirt cover (see Figure 5).

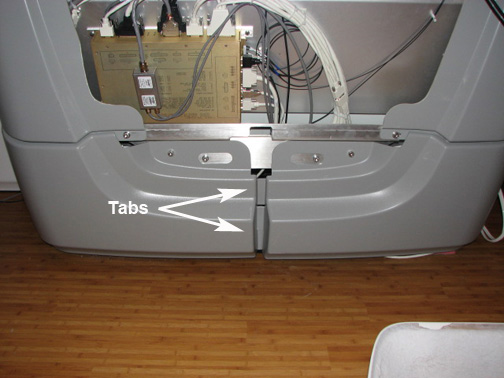

Figure 5. Aligning Skirt Tabs
Snap popper on the skirt cover into place and replace the two (2) screws (see Figure 6).

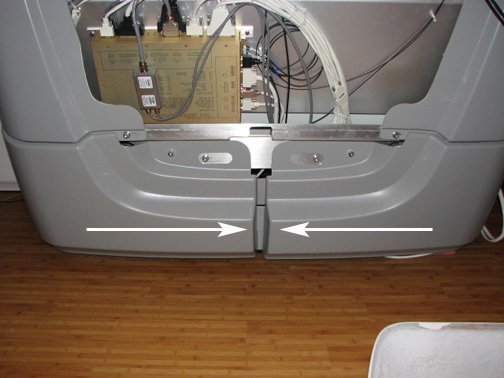

Figure 6. Installing skirt covers

No finalization steps.
