Xtream Display Default Patient Positioning

Prerequisites

Overview

This procedure provides steps for default patient position setting change.

This menu starts the setting of default patient position (Table height and Cradle position). This tool is run on Xtream Display. Customer can set 5 kinds x 2 (HF/FF) default setting. Three of them can be displayed and they are selectable by customer. (via Tool menu).

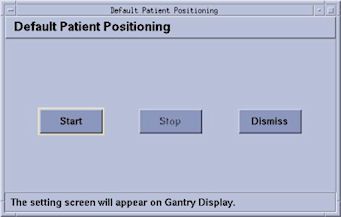

Figure 1. Default Patient Positioning menu
As shown in the following Illustration, there are three steps to set the Default Patient Positioning. Pressing “Save” button will keep the customized setting. Finally press Stop and Dismiss at CSD menu.

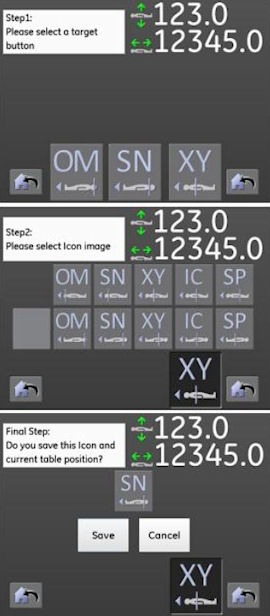

Figure 2. Default patient positioning setting menu on Xtream Display

No finalization steps.
