Liquid Bearing Tube Rotor stop procedure

Prerequisites

1 Tube Rotor Stop Procedure

Procedure

  1. Start “Rotor Control Tool” under “Diagnostic” tab from CSD menu.
  2. Check “Stop” radio button and press “Accept” button. Then press “confirm” to rotate Gantry.

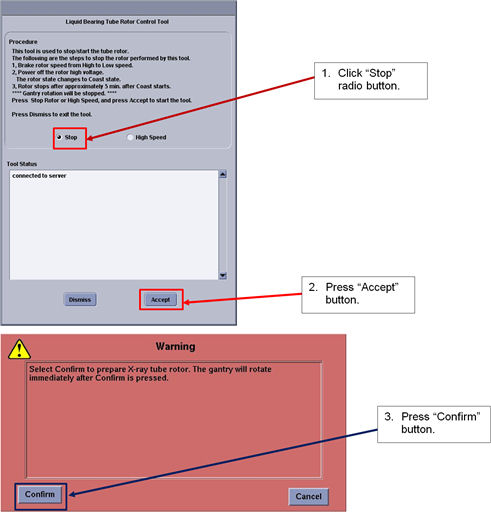

    Figure 1. Window - Rotor Control Tool

  3. Confirm that the Tool Status shows “Succeeded” and press “Dismiss” button to close the tool.

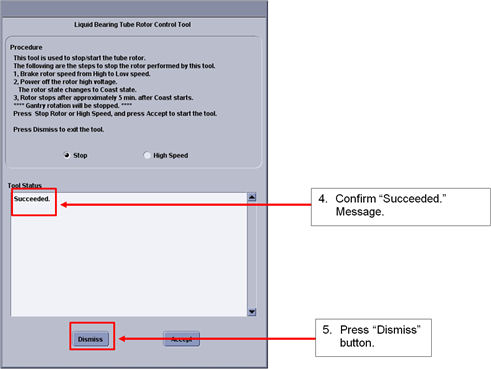

    Figure 2. Window - Tool Status

2 Finalization

No finalization steps.
