LCD Monitor Replacement

This procedure describes and illustrates the steps necessary to replace either LCD Display Monitors located with the Operator Console.

Prerequisites

Figure 1. EIZO S1934 LCD Video Monitor

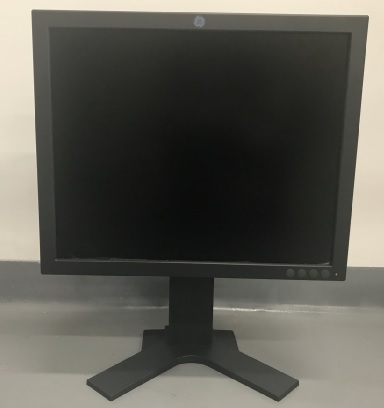

Figure 2. EIZO (DIN6868-157) LCD Video Monitor

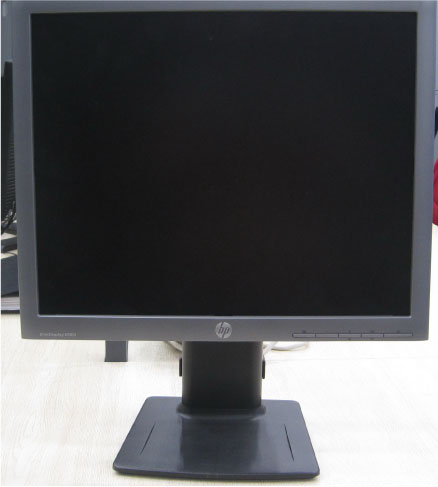

Figure 3. HP LCD Video Monitor

1 Power-Off (Shut Down) the Console

Procedure

  1. Select one of the following methods to power off the Operator Console:

    • If applications are running, click the Shut Down icon and select Shut Down.

    • If applications are down, open a Unix Shell using the Toolchest. Type: {ctuser@hostname} halt and press Enter.

    The Operator Console monitor will display a ‘System Halted’ message when it is acceptable to power off the Operator Console.

  2. Power OFF the Operator Console.

2 Remove Old LCD Monitor

Procedure

  1. Disconnect the Power Cord and Video Cable from the LCD Monitor being replaced.
  2. Remove the LCD Monitor and set aside.

3 Install Replacement LCD Monitor

3.1 Install Replacement LCD Monitor for EIZO

Procedure

  1. Place the replacement LCD monitor on the Operator Console.
  2. Connect video cable and power cable to the LCD monitor.

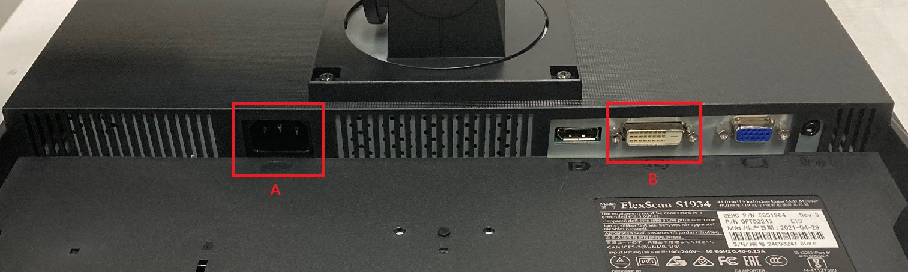

    Figure 4. EIZO (S1934) LCD Monitor Connection

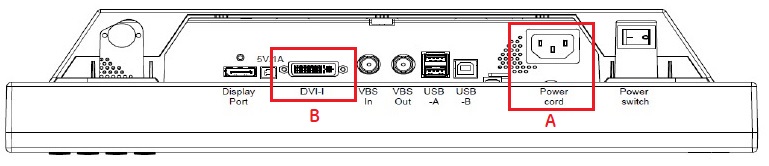

    Figure 5. EIZO (DIN) LCD Monitor Connection

  3. Make sure the power switch on the LCD Monitor is turned on.

3.2 Install Replacement LCD Monitor for HP

Procedure

  1. Place the replacement LCD monitor on the Operator Console.
  2. Connect video cable and power cable to the LCD monitor.

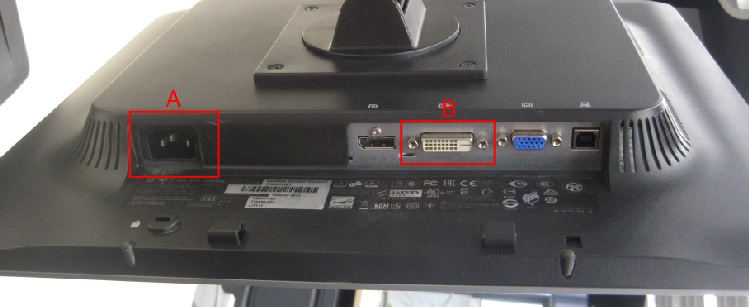

    Figure 6. HP E190i LCD Monitor Connection

  3. Make sure the power switch on the side of the LCD Monitor is turned on.

4 Verify LCD Monitor Replacement

Procedure

  1. Power ON the Operator Console at the console front panel switch.
  2. Visually verify that the LCD Monitor powers up and receives a video signal.
    note: The LCD Monitor Power LED will illuminate Green if both power and video are present. If the video signal is missing, the LCD Monitor Power LED will illuminate Yellow.
  3. In order to assure proper operation of the LCD Monitor it is necessary to perform or LCD Video Monitor Setup for Z8G4.

    Return to this procedure when finished.

5 Finalization

After completing the LCD Monitor Setup Procedure, perform a complete shutdown of the Operator Console and restart the system.
