Liquid Bearing Tube Rotor stop procedure

Prerequisites

Table 2. Required conditions
Condition	Reference	Effectivity
Only trained service personnel should service the GE CT Scanner.	-	-
Plug in Class M Service Key or Class C2 license file has already been installed to present LB Tube Rotor Control menu in CSD.	-	-

Start Rotor Control Tool under Diagnostic tab from CSD menu.
Check the current rotor status. If it’s not Stop, then check Stop and press Accept button to stop the rotor.

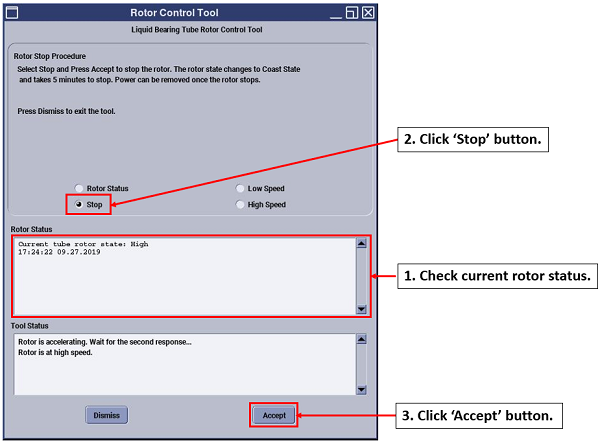

Figure 1. Window - Rotor Control Tool
Confirm that the Tool Status shows Rotor is coasting or stopped and press Dismiss button to close the tool.

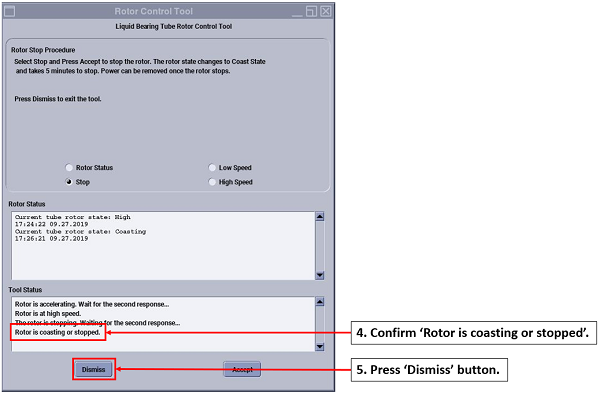

Figure 2. Window - Tool Status

No finalization steps.
