Xtream Display Patient Information

Prerequisites

Overview

This procedure provides steps for Xtream Display Patient Information setting change.

1 CSD -> Configuration -> Patient Information on Xtream Display

Procedure

  1. This is the setting of patient information display hide timing.

    • OFF: Patient information is not displayed anytime.

    • Hide at Confirm: Patient information will be hidden when Confirm button is pressed.

    • Always: Patient information will be hidden at End Exam.

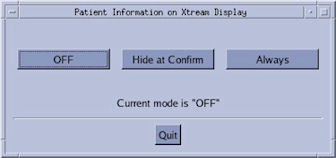

    Figure 1. Patient Information on Xteam Display menu (10HW02.10 / 10HW33.8)

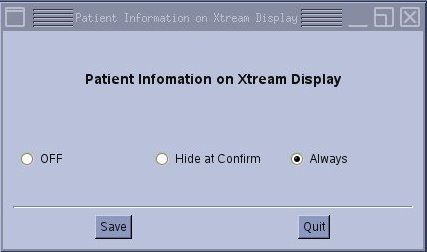

    Figure 2. Patient Information on Xteam Display menu (11HWxx.xx or later)

2 CSD -> Configuration -> Patient Information on Xtream Display (with One-Stop Scannning option)

Procedure

  1. Patient Information on Xtream Display will have additional fields when One-Stop Scanning option is installed (11HWxx.x or later). The upper portion is same as original setting. The lower portion has the setting of One-Stop Scanning display contents.

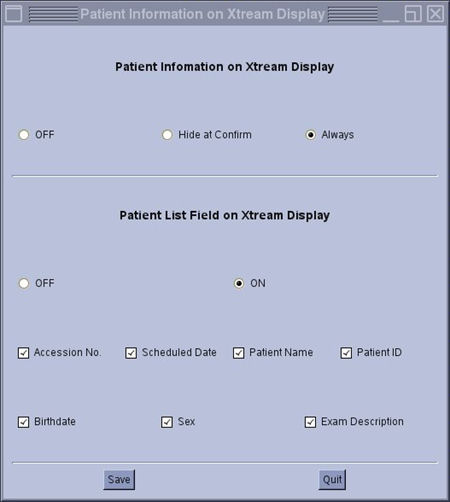

    Figure 3. Patient Information on Xtream Disply

  2. The setting will be affected to Xtream display as shown in the following Illustration. Patient List field can be set to On/Off totally, and set to On/Off by each parameter.

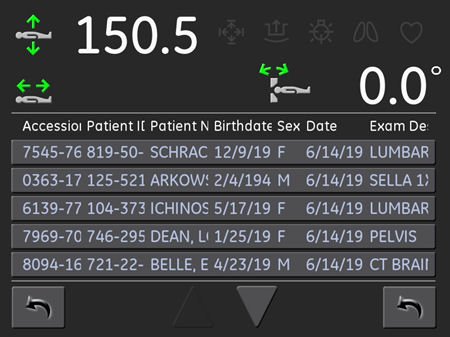

    Figure 4. The setting on Xtream Display

3 Finalization

No finalization steps.
