Switch Hub Replacement

Prerequisites

Overview

1 Removal Procedure

Procedure

  1. Select one of the following methods to Power OFF the Operator Console:
    1. If Applications are up, click on the Shut Down button and select Shutdown.

      The Operator Console monitor will display a 'Power Down' message when it is acceptable to power OFF the Operator Console.

    2. If Applications are down, open a Unix Shell. Type: halt.
  2. Power OFF the console at the front panel switch.

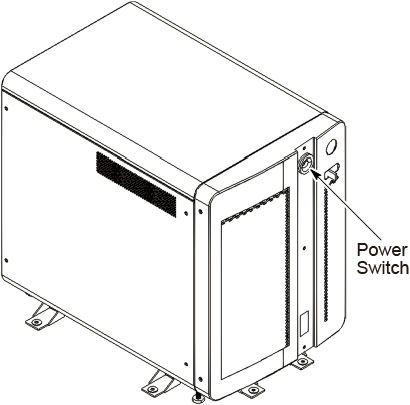

    Figure 1. Power Switch

  3. Remove the left side cover.

    Refer to Replacement > Console > (Console Cover Removal and Installation Procedure).

  4. Disconnect all cable connectors from the Switch Hub.

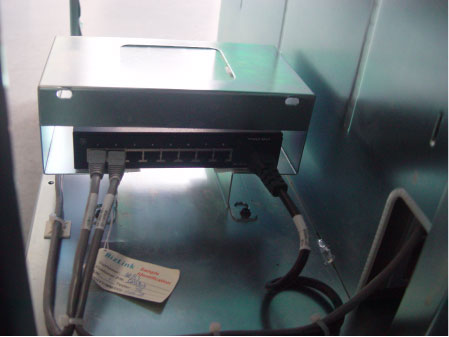

    Figure 2. Cable Connectors of Switch Hub

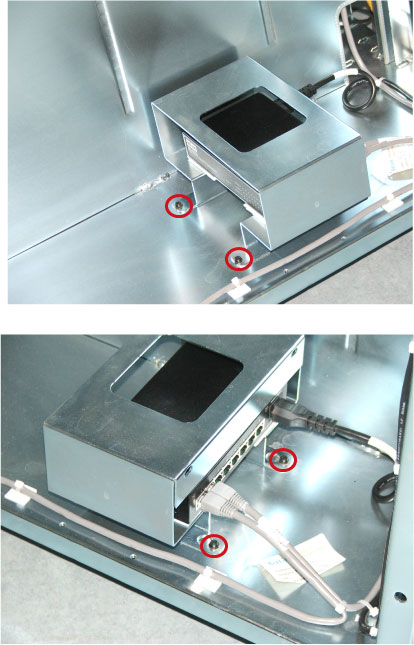

  5. Remove four screws from switch hub as below illustration, and remove the switch hub.

2 Installation Procedure

Procedure

  1. Install the new switch hub using 4 screws.
  2. Re-Connect all cable connectors to the switch hub.

3 Finalization

Re-Install the console side cover.
