Hart Board Assembly Replacement

Prerequisites

Procedure

    Notice Image
    • notice
    • Understand and follow the Safety Guidelines Manual.
  1. Move the cradle to the OUT mechanical limit position by hand.
  2. Raise the Table to its highest position.
  3. Remove power from Table by turning off “120VAC”, “Axial Drive” and “HVDC” switches on the service switch panel.
  4. Remove the following cover from the Table:
  5. Remove 4 screws, and slide the power driver support toward the Gantry.

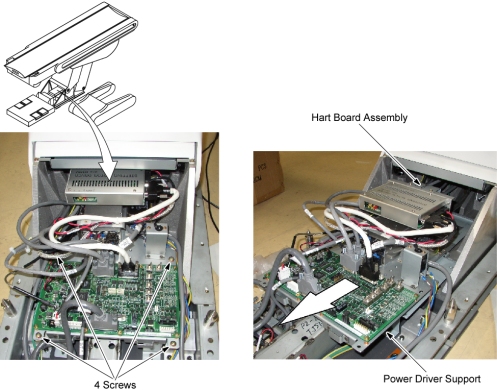

    Figure 1. Location of the Hart Board Assembly

  6. Remove the board cover by unscrewing its 2 screws.

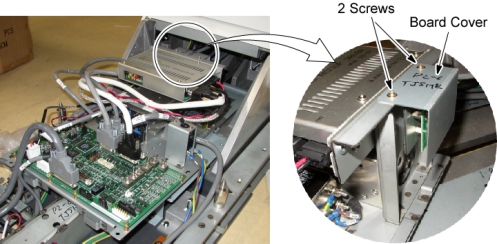

    Figure 2. Board Cover Removal

  7. Disconnect the cable connector J1 from the board.
  8. Remove the Hart Board Assembly by unscrewing its 3 screws.

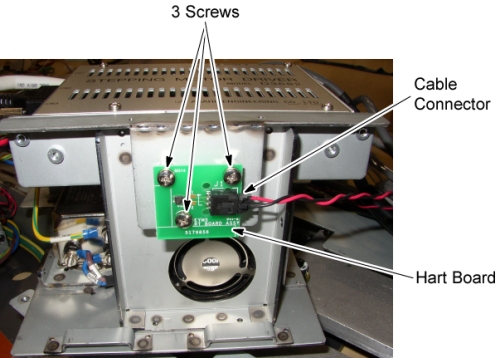

    Figure 3. Hart Board Assembly Replacement

  9. Install the new Hart Board Assembly by referring toStep 8 through Step 6.
  10. Restore the Table to original configuration.

Finalization

No finalization steps.
