ESD Grounding Locations

This document defines the approved ESD grounding points for the CT Gantry.

The CT gantry has defined ESD attachment points that allow easy attachment for banana clip and alligator clip style connections. There are points on the stationary frame on each side of the gantry and rotating assembly behind the DAS plate. The stationary frame locations should always be used if the length of your ESD strap is sufficient.

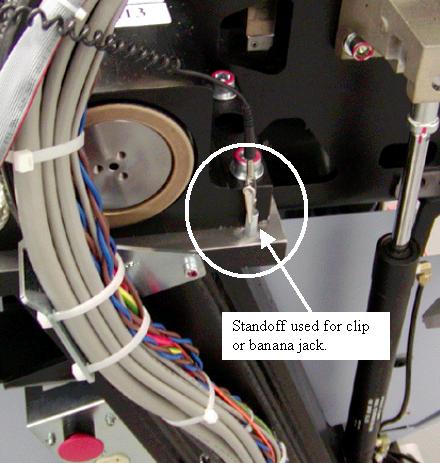

Figure 1. Gantry Right side clip example

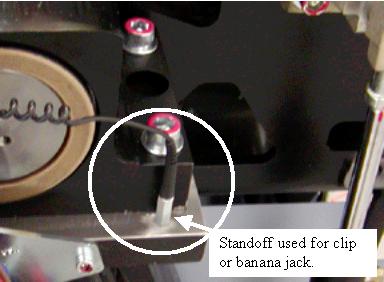

Figure 2. Gantry right side banana jack example

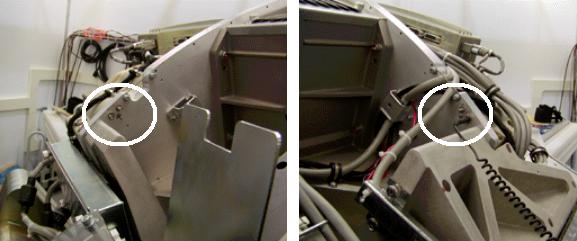

Figure 3. Gantry left side connection

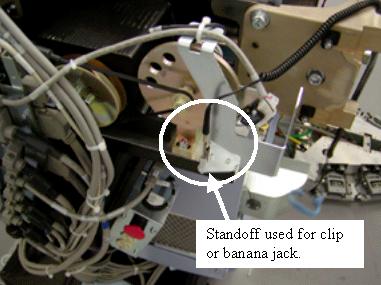

Figure 4. DAS plate backside ESD connection points
