Vyper DAS Air Filter Replacement

Prerequisites

This procedure defines the replacement process for DAS air filter.

1 Air Filter Removal

Procedure

  1. Move the table cradle to the home position, and position the table to its lowest elevation.
  2. Remove the table foot switch cover.
  3. Remove the gantry right side cover.
    4. Notice Image
    • notice
    • Always turn OFF the HVDC before the 120VAC. Turning OFF 120VAC power before HVDC power can result in equipment damage.
  4. Turn OFF Axial Enable, HVDC, and 120VAC switches on the service switch panel.
  5. Remove the rest of the gantry covers except the gantry rear cover.
  6. Turn ON the 120VAC switch and rotation the DAS at 12 o’clock position.
  7. Turn OFF the 120VAC switch and lock the gantry in position using the rotational lock.
  8. Disconnect the fan control cable connector and the sensor cable connector from the Vyper fan duck cover ASM.
  9. Remove the Vyper fan duck cover ASM by unscrewing its M6x12 head cap screws by a on the Vyper Fan Duck Cover.

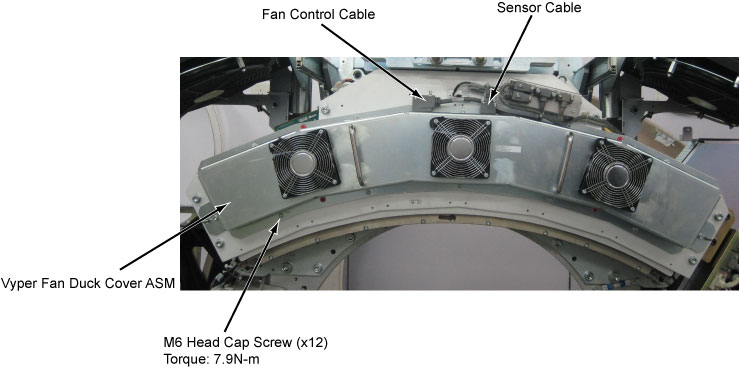

    Figure 1. Remove the Vyper Fan Duck Cover ASM

  10. Remove the Vyper DAS air filter by unscrewing its M6x4 red head cap screws on the Vyper plenum plate.

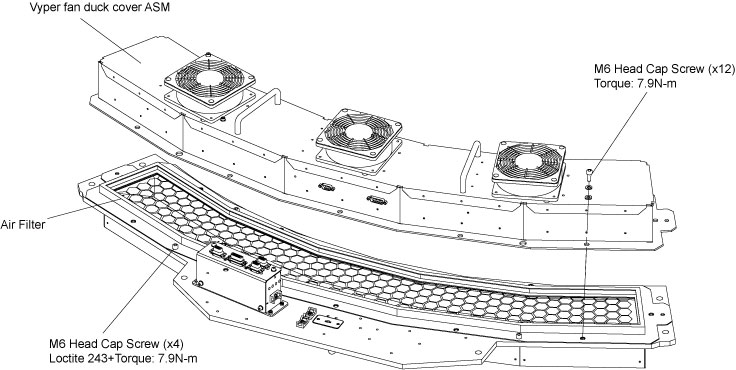

    Figure 2. Vyper DAS Air Filter Removal

2 Air Filter Installation

Procedure

  1. Secure the new air filter to the Vyper plenum plate by screwing four M6 screws. (Torque: 7.9N-m + Loctite243)
  2. Reinstall the Vyper fan duct cover asm by screwing all M6 screws (Torque: 7.9N-m).
  3. Reconnect the fan control cable connector and the sensor cable connector to the Vyper fan duck cover asm.
  4. Disengage the rotational lock.
  5. Restore the gantry original configuration.

3 Finalization

No finalization steps.
