Filter Replacement

Prerequisites

Procedure

    Notice Image
    • notice
    • Understand and follow the Safety Guidelines Manual.
  1. Move the cradle to the OUT mechanical limit position by hand.
  2. Raise the Table to its highest position.
    note: If the Table up/down movement is inoperative, use the service power cable to raise the Table (refer to Enforced Table Elevation) .
  3. Remove power from Table by turning off “120VAC”, “Axial Drive” and “HVDC” switches on the service switch panel.
  4. Remove the following cover from the Table:
  5. Remove 4 screws, and slide the power driver support toward the Gantry.

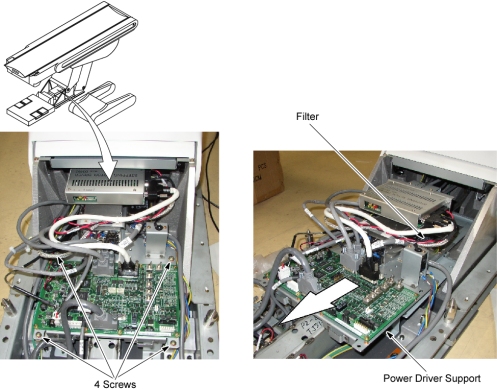

    Figure 1. Location of Filter

  6. Remove the Stepping Motor Driver (refer to Stepping Motor Driver Replacement)
  7. Remove a plastic cover by unscrewing its 4 screws.

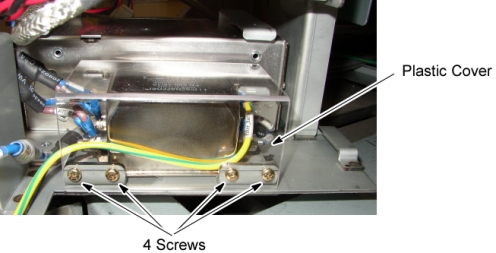

    Figure 2. Plastic Cover Removal

  8. Mark and remove the wires from the Filter.
  9. Remove the Filter by unscrewing its 2 screws.

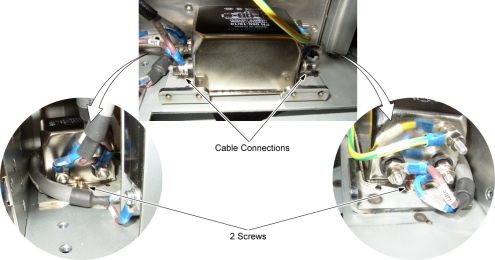

    Figure 3. Filter Removal

  10. Install the new Filter by referring toStep 9 through Step 5.
  11. Restore the Table to original configuration.

Finalization

No finalization steps.
