CAM A/B Amplifier Check

Prerequisites

Table 2. Required conditions
Condition	Reference	Effectivity
Refer to the Collimator Control Board Schematics for this procedure.	-	-
Before beginning this procedure, please read Equipment Service - Gantry.	-	-

Check the power supply to AMP.
Swap cables with the other AMP.
Select COLLIMATOR AND FILTRATION.
Exercise the CAM A/B and verify no test failures. See Figure 1.

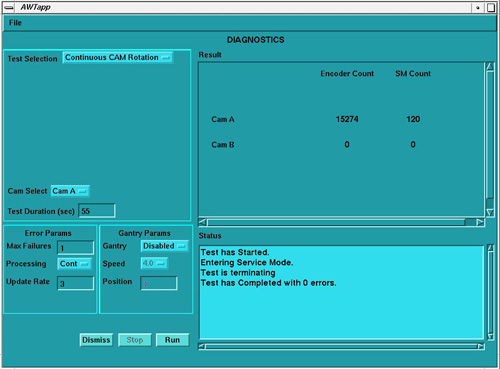

Figure 1. Collimator CAM Continuous Rotation Test

No finalization steps.
