Performix Pro100 Tube Crate

Prerequisites

Overview

The objective of this procedure is to describe the packaging and removal procedure of the Performix Pro 100 X-Ray Tube. The tube packaging for is similar to that of previous LightSpeed products, with some minor changes.

Procedure

  1. Remove the cover. Flip it over and place near gantry. The cover will become the base of the container for returning the dead tube from the field.
  2. Remove the container’s center section, leaving the tube and crate base together.
  3. Disconnect the tube from compensation bellows (attached to tube crate) from the tube (see Figure 1).

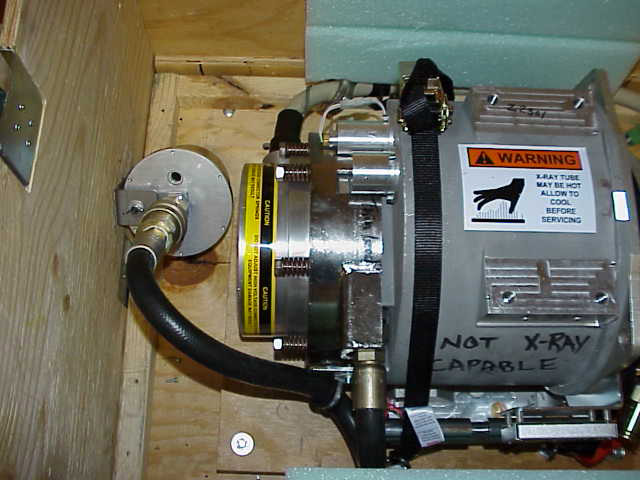

    Figure 1. Tube Crate, Showing Compensation Bellows

  4. Place the old tube onto the new base (was the crate cover).
  5. Use the sling / hoist to lift the tube to the gantry. Newer tubes do not require a sling to lift. Lowering a tube onto the base or raising one looks the same (see Figure 2).

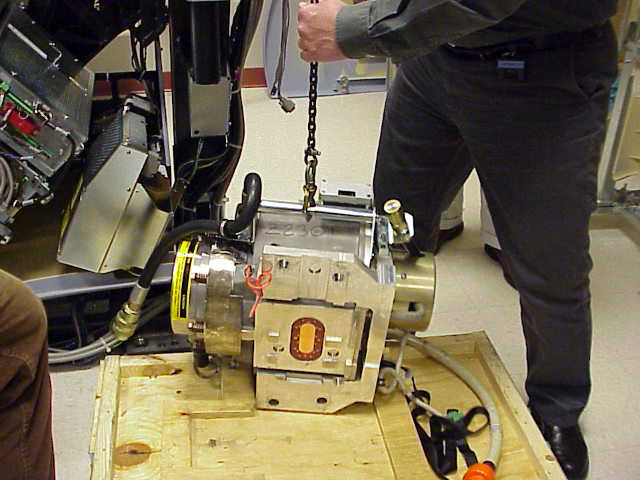

    Figure 2. Lifting New Tube

  6. Reassemble the center section of the box onto the base.
  7. Place the original base on top as the cover.

Finalization

  1. If necessary, the bellows mounted to the inside of the tube crate can be used to hold excess oil that may result from the tube change procedure.
