Laser Light Replacement

Prerequisites

Overview

Procedure

  1. Remove gantry covers as required.

    Refer to Parts Replacement > Gantry > Enclosure > (Cover Removal Procedure).

    2. Notice Image
    • notice
    • Always turn OFF the HVDC before the 120 VAC. Turning OFF 120 VAC power before HVDC power can result in equipment damage.
  2. Turn off the three (3) main power switches (Axial Drive, HVDC, 120VAC) on the Service Switch Panel.
  3. Disconnect the electrical connection to the defective laser assembly
  4. Loosen laser clamp nut.
  5. Attempt to remove the laser from clamp using the 5mm hex key. If additional clearance is needed, loosen 2 mounting screws NOT alignment screws (see Figure 1). Remove mounting bracket if necessary.

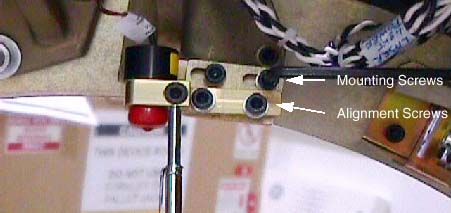

    Figure 1. Laser Mount Assembly

Finalization

No finalization steps.
