HP Host Computer CDIP/CDIP2 Board Replacement

Prerequisites

Overview

1 Power OFF (Shut Down) the Console

Procedure

  1. If Applications are up, click on the Shut Down button.
  2. Power OFF the Operator Console front switch, when instructed to “Power Down”.
  3. Visually verify proper labeling of each cable and disconnect all HP Host Computer rear cables.

    (Refer to schematic for HP cable connection details - click on PDF icon, 3569661.pdf, to view PDF version.)

2 Remove the Side Cover

In True-in-One console, CDIP/CDIP2 board is installed in HP host computer. Before CDIP/CDIP2 board replacement, need to open side cover of HP host computer at first. Removed cables from CDIP/CDIP2 board, perform the following steps:

Procedure

  1. Unlock the cover on the side of the Host Computer.

    The cover keys are attached to the back panel of the system.

  2. Pull out on the side cover latch to release the side cover.
  3. Tilt the cover open, then lift it off. Refer to Figure 1.

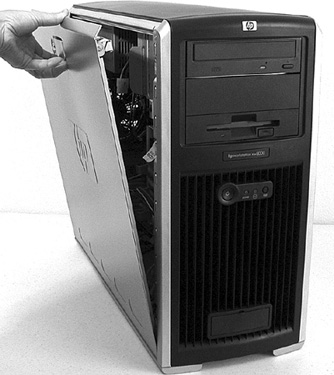

    Figure 1. Opening the Side Cover

3 CDIP/CDIP2 board replacement

Procedure

  1. Locate the CDIP/CDIP2 board in Host Computer. CDIP/CDIP2 board is installed in slot 7.
  2. Remove the old CDIP/CDIP2 board from Host Computer and install new CDIP/CDIP2 board in the same slot position (slot 7) in Host Computer.

4 Replace the Side Cover

Procedure

  1. Ensure that all internal cables are properly connected and safely routed in the Host Computer.
  2. Place the side cover onto the Host Computer chassis (aligning the guide rail on the bottom inside edge of the cover with the bottom edge of the Host Computer chassis). Refer to Figure 2.

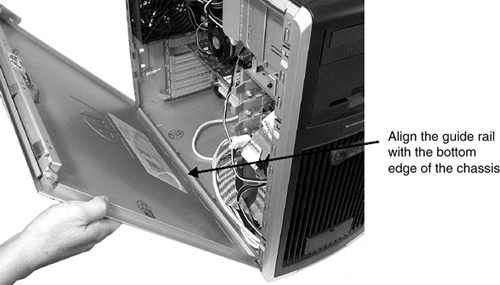

    Figure 2. Aligning and Closing the Cover

  3. Verify no cables are pinched, and gently close the cover.
  4. Lock the cover using the key provided.

5 Finalization

Procedure

  1. Take some scans, verify the image(s) reconstruct and are displayed.
  2. Install the side Operator Console covers.
