CAM A/B Amplifier Check

Prerequisites

1 Objective

Procedure

  1. Verify that the CAM A/B Encoder is functional.

    REFERENCES

    Schematics - Collimator Control Board

2 Procedure Summary

Procedure

  1. Check the power supply to AMP.
  2. Swap cables with the other AMP.
  3. Select SERVICE DESKTOP.
  4. Select DIAGNOSTICS.
  5. Select COLLIMATOR AND FILTRATION.
  6. Exercise the CAM A/B encoders and verify no test failures. Reference Figure 1.

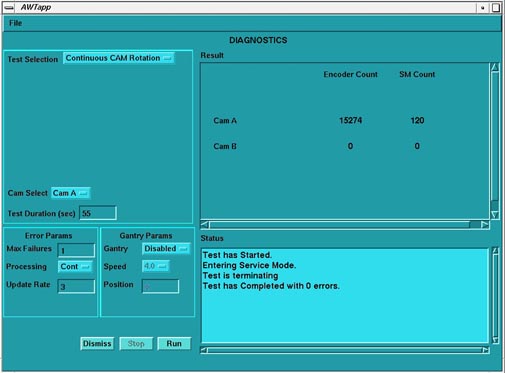

    Figure 1. Collimator CAM Continuous Rotation Test

3 Finalization

Finalization

No finalization steps.
