Temperatures for Gantry and Detector

This document defines the available Real Time Statistics (RTS) data available on the system for the Gantry and Detector Temperature sensors. The RTS data is sent by the DCB to the host for the Detector temperatures and via the TGP for the gantry temperatures at the end of each exam.

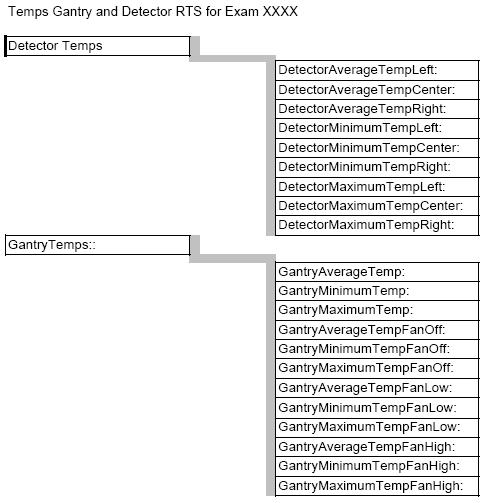

The RTS viewer for the Gantry and Detector temperatures shows a listing of average, minimum and maximum temperatures seen during a specific exam. See Figure 1 for a pictorial view of the data to help in understanding the information seen. The information is grouped into 2 areas for the listed exam.

Detector Temps
Gantry Temps

Below is a sample of the data seen with explanations and ranges defining normal operation.

Table 1. RTS data
RTS (Real Time Statistics) Name	Data Example	Unit	Range	Explanation
Date: Wed Apr 7 08:12:50 2004				date/time stamp for the exam
ENDEXAM: ID 801				exam number associated with this data
DetectorTemps::				temps measured during the stated exam
DetectorAverageTempLeft:	35.860001	degrees C	35.7 - 36.3	average temperature of the left detector zone
DetectorAverageTempCenter:	35.910000	degrees C	35.7 - 36.3	average temperature of the center detector zone
DetectorAverageTempRight:	35.910000	degrees C	35.7 - 36.3	average temperature of the right detector zone
DetectorMinimumTempLeft:	35.860001	degrees C	35.7 - 36.3	Minimum temperature of the left detector zone
DetectorMinimumTempCenter:	35.910000	degrees C	35.7 - 36.3	Minimum temperature of the center detector zone
DetectorMinimumTempRight:	35.910000	degrees C	35.7 - 36.3	Minimum temperature of the right detector zone
DetectorMaximumTempLeft:	36.240002	degrees C	35.7 - 36.3	Maximum temperature of the left detector zone
DetectorMaximumTempCenter:	36.110001	degrees C	35.7 - 36.3	Maximum temperature of the center detector zone
DetectorMaximumTempRight:	36.200000	degrees C	35.7 - 36.3	Maximum temperature of the right detector zone
GantryTemps::
GantryAverageTemp:	23.889999	degrees C		Average temperature seen by the gantry temp sensor, should not see anything higher than 43-46 degrees C during normal use.
GantryMinimumTemp:	23.809999	degrees C		Minimum temperature seen by the gantry temp sensor
GantryMaximumTemp:	28.150000	degrees C		Maximum temperature seen by the gantry temp sensor
GantryAverageTempFanOff:	26.150000	degrees C		Average temperature seen by the gantry temp sensor while the fans were off.
GantryMinimumTempFanOff:	26.000000	degrees C		Minimum temperature seen by the gantry temp sensor while the fans were off.
GantryMaximumTempFanOff:	28.139999	degrees C		Maximum temperature seen by the gantry temp sensor while the fans were off.
GantryAverageTempFanLow:	26.120001	degrees C		Average temperature seen by the gantry temp sensor while the fans were at low speed
GantryMinimumTempFanLow:	26.040001	degrees C		Minimum temperature seen by the gantry temp sensor while the fans were at low speed
GantryMaximumTempFanLow:	28.150000	degrees C		Maximum temperature seen by the gantry temp sensor while the fans were at low speed
GantryAverageTempFanHigh:	23.889999	degrees C		Average temperature seen by the gantry temp sensor while the fans were at high speed
GantryMinimumTempFanHigh:	23.809999	degrees C		Minimum temperature seen by the gantry temp sensor while the fans were at high speed
GantryMaximumTempFanHigh:	26.660000	degrees C		Maximum temperature seen by the gantry temp sensor while the fans were at high speed
