LCD Monitor Connections

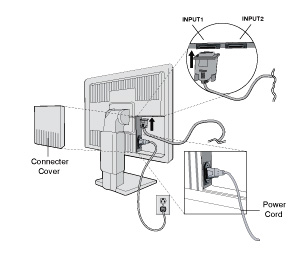

1 Rear Connections

Table 1. LCD Monitor - HD D-Sub Connector Pin-Out
PIN - ASSIGNMENT OF 15-PIN D-SUB:
1	Red Video	6	Red Ground	11	Monitor Ground
2	Green Video	7	Green Ground	12	DDC-Serial Data
3	Blue Video	8	Blue Ground	13	H-Sync.
4	No Connection	9	+5V input *)	14	V-Sync.
5	DDC-Return	10	Logic Ground	15	DDC-Serial Clock
* In case the power of the PC unit is switched off and the power of the monitor is switched on, no voltage may occur at pin 9.

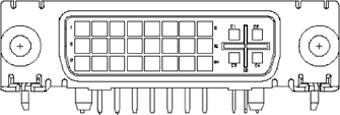

Table 2. LCD Monitor - DVI Connector Pin-Out
PIN - ASSIGNMENT OF DVI CONNECTOR
1	TX2-	9	TX1-	17	TX0-
2	TX2+	10	TX1+	18	TX0+
3	Shield (TX2 / TX4)	11	Shield (TX1 / TX3)	19	Shield (TX0 / TX5)
4	TX4-	12	TX3-	20	TX5-
5	TX4+	13	TX3+	21	TX5+
6	DDC-Serial Clock	14	+5V power *)	22	Shield (TXC)
7	DDC-Serial Data	15	Ground (H/V sync)	23	TXC-
8	V-Sync. (analog)	16	Hot plug detect	24	TXC+
C1	Red Video (analog)	C2	Green Video (analog)	C3	Blue Video (analog)
C4	H-Sync. (analog)	C5	Ground (analog)	-	-
* In case the power of the PC unit is switched off and the power of the monitor is switched on, no voltage may occur at pin 14.
