High Voltage Bleeder (Pro, RT, VCT)

note:

The bleeder described below is only used on Pro16 systems.

For measuring the high voltage kV at the X-Ray tube a bleeder is necessary. Below is a picture of the bleeder kit developed for this system. It is smaller than in past generations. Also, when compared to past generations the aliasing problem is no longer present.

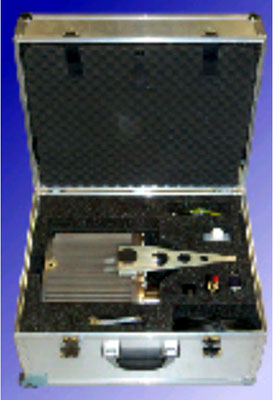

Figure 1. High Voltage Bleeder Kit, Open

Figure 2. High Voltage Bleeder Kit, Closed for Travel

Notice Image
  • notice
  • Always connect the bleeder to the system properly. Failure to do so can result in damage to the system.
