GDAS-16 EMI Shielding

The GDAS-16 subsystem requires extra EMI shielding on the Jedi HV tank and a shield plate between the inverter tank and the GDAS-16 right side chassis/DAS Plate. This shielding can be seen in Figure 1.

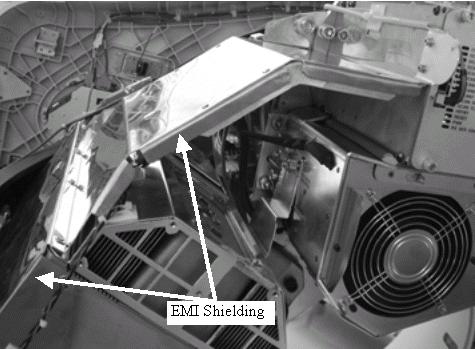

Figure 1. GDAS EMI shielding

The EMI shielding on the HV Tank comes with the Tank FRU. The shield plate between the tank and the DAS plate/right side chassis must be removed to remove/install the right side GDAS-16 chassis or the HV tank.
