Additional procedure for NIO64 with Z8G4

In case of NIO64 with Z8G4 modified from replacement of Z820/Z840, the followings shall be done for Workstation removal.

Procedure

  1. Remove Top L bracket from Workstation.
  2. Pull it out to the front slightly and slide out the backward of workstaion diagonally. Refer to the Figure 1.

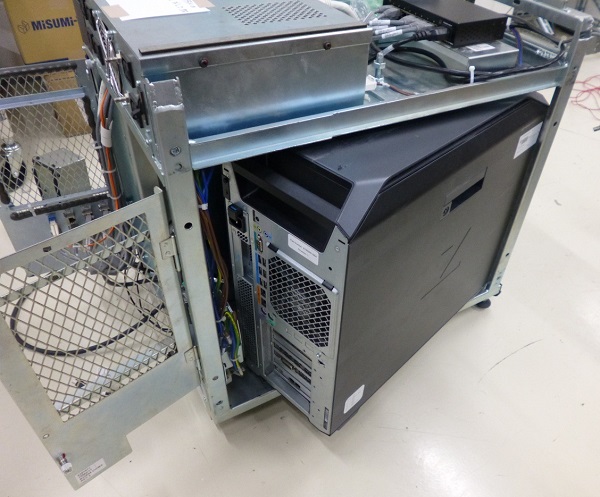

    Figure 1. Console Replacement
