Rotor Control Tool with LB tube

Prerequisites

Table 2. Required conditions
Condition	Reference	Effectivity
PPC kV control board alive and running: DS17-DS24 LEDs are lit successively or a combination of them blink.	-	-
Rotation board alive and running: DS5 Led blinking.	-	-
Rotation DC supply present: DS7 neon is lit.	-	-
Cabling among rotation board, HEMIT and tube checked.	-	-

Overview

Objective: LB tube rotor control tool can control liquid bearing tube rotor states from stop to high speed or high speed to stop. This tool can be used for LB tube rotor diagnostics.

Procedure

Launch the Diagnostics.

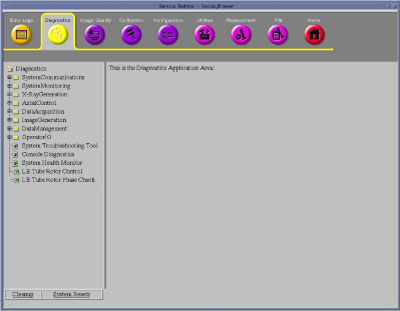

Launch the LB Tube Rotor Control tool.

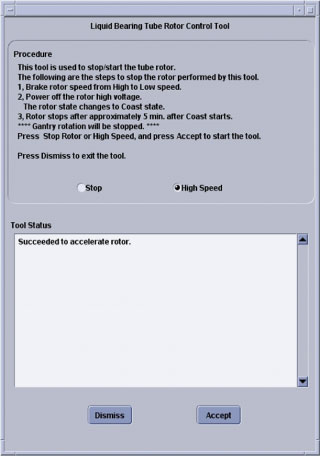

Choose High Speed or Stop box, accept to control rotor status per your wanted.
If a problem occurs, check the error code.

Finalization

No finalization steps.
