Open Console (Z8G4) Recon GPU Card Replacement

Prerequisites

Overview

This procedure shall be followed when replacing the Recon GPU card in the Open Console (Z8G4).

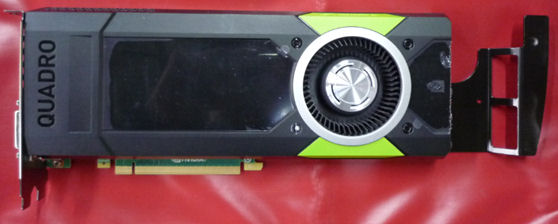

Figure 1. Recon GPU card

1 Preparation

Procedure

  1. Shutdown system. Select one of the following methods to Power OFF the Console:

    • If Applications are up, click on the Shut Down button on desktop display and select Shutdown.

    • If Applications are down, open a Terminal Window. Type: halt , then press ENTER.

    • When halt command has finished, power Off the console at the front panel switch.

  2. Apply LOTO. See Equipment Service - Lockout-Tagout-PPE procedure.

2 Recon GPU Card Replacement

Procedure

  1. Pull out the latch to release the host computer left side cover.

    Figure 2. Side Access Panel Removal

  2. Open and remove the module small side cover

    Figure 3. Remove module small side cover

  3. Locate Recon GPU Card by referencing the Illustration below.

    Figure 4. Z8G4 Component Location

    ① Scan Data SSD
    ② PCI Card
    • 1. FDIP
    • 2. Graphics Card
    • 3. Open
    • 4. GPU
    • 5. Open
    • 6. Open
    • 7. NIC Card
    ③ DVD Drive
    ④ Empty
    ⑤ Empty
    ⑥ Image Desk
    ⑦ OS and App Disk
  4. Disconnect the power cable from the Recon GPU card, press the card slot release lever and pull out the old Recon GPU card.
    note:

    Lift up the card latch when removing the card. (See Figure 5)

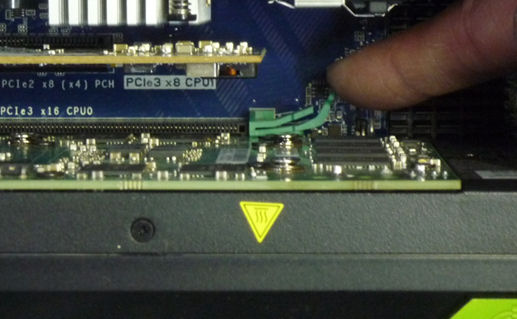

    Figure 5. PCI card Latch

  5. Replace the existing Recon GPU Card with new one, insert in slot #4.
    1. Carefully push the GPU card in the slot #4 and avoid cables interference.

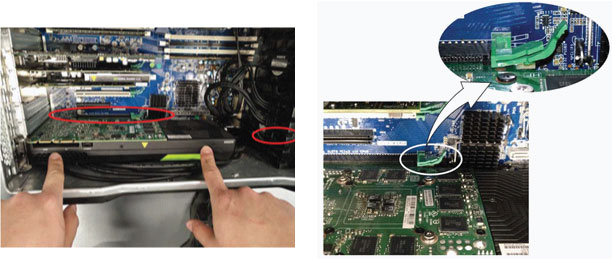

      Figure 6. Install GPU Card

    2. Connect the Power Cable to GPU.
    3. Close the PCI card retention clamp.
  6. Reinstall all removed components, and reconnect any cables that have been disconnected.

3 Restore the Console

Procedure

  1. Remove LOTO from console.
  2. Reinstall the module small side cover.
  3. Reinstall the host computer left side cover.

4 Finalization

Procedure

  1. Confirm Host computer powers up when console power is turned on.
  2. Check the GPU card installed. Open a shell, then type:

    {ctuser@darc} ls /proc/driver/nvidia/gpus | wc -l

    • If “2” displays, the Recon GPU card is installed.

    • If “1” displays, the Recon GPU card is un-installed.

    Figure 7. Recon GPU Installation Status

    ① 2: the Recon GPU card is installed.
  3. Perform the Functional Checks → System Scanning Test instructions from the procedure list.
