NIO64 Host Computer (Z820) System/Image HDD Replacement

Prerequisites

Table 4. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
OS Disk - Hard Disk Drive, 300GB, SAS 10K RPM	1	-	6450000-100	Seagate ST9300605SS
Image Disk - Hard Disk Drive , 300GB SAS 10K RPM	1	-	6450000-100	Seagate ST9300605SS

Table 5. Safety

TO PREVENT DAMAGE TO COMPONENTS WITHIN THE Z820, OBSERVE THE FOLLOWING ESD PRECAUTIONS:
- WORK ON A STATIC-FREE MAT.
- WEAR A STATIC STRAP TO ENSURE THAT ANY ACCUMULATED ELECTROSTATIC CHARGE IS DISCHARGED FROM YOUR BODY TO GROUND.
- CREATE A COMMON GROUND FOR THE EQUIPMENT YOU ARE WORKING ON BY CONNECTING THE STATIC-FREE MAT, STATIC STRAP AND PERIPHERAL UNITS TO THAT PIECE OF EQUIPMENT.
FOR FURTHER INFORMATION REGARDING ESD PROTECTION, REFER TO THE SAFETY CHAPTER IN THIS PUBLICATION.

IN ORDER TO MEET EMC REQUIREMENTS, THE CHASSIS MODULES MUST BE PROPERLY INSTALLED AFTER SERVICING. CHECK THAT THE MODULES ARE MOUNTED FIRMLY IN PLACE AND LOCKED DOWN WHERE APPLICABLE.

FOLLOW ALL REQUIRED SAFETY AND PPE PROCEDURES CUSTOMARY FOR YOUR ORGANIZATION WHEN WORKING ON THIS PRODUCT.

Overview

This procedure shall be followed when replacing the System or Image hard drive in a Z820 computer.

Shutdown system. Select one of the following methods to Power OFF the Console:
- If Applications are up, click on the [Shut Down] button on desktop display and select [Shutdown].
- If Applications are down, open a Terminal Window. Type: halt , then press ENTER.
- When halt command has finished, power Off the console at the front panel switch.
Apply LOTO. See Equipment Service - Lockout-Tagout-PPE procedure.
Remove Front and Top covers from NIO64 console.

Refer to Replacement → Console (RIO) → Console Cover Removal and Installation.
Remove the Z820 computer from the NIO64 console chassis.

Refer to Replacement → Console (NIO64) → HP Host Computer Z820 Replacement

Open the Z820 computer side access panel.
Locate System or Image Hard Drive FRUs by referencing the Illustrations below.

Figure 1. Z820 Airflow Guide and Expansion Card Support
Remove the original Hard Drive assembly from the computer’s drive bay.

Remove the 2.5 to 3.5 inch Form Factor Adapter Bracket with Hard Drive from the Hard Drive carrier rails. See Illustration 3.
Remove the 2.5 to 3.5 inch Form Factor Adapter Bracket from Hard Drive and set Hard Drive aside. See Illustration 3.
Install replacement Hard Drive into the original 2.5 to 3.5 inch Form Factor Adapter Bracket removed from original Hard Drive.
Install replacement Hard Drive with Form Factor Adapter Bracket into original Hard Drive carrier rails.

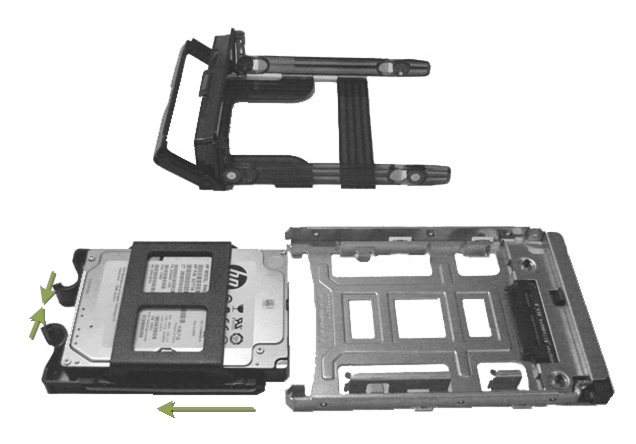

Figure 2. Hard Drive Form Factor Brackets and Carrier Rail Assembly

Fully slide the Z820 computer back into the console chassis, until mounting brackets are flush against the console chassis.
Install and torque the four (4) 3mm socket cap screws that mount the Z820 computer in the NIO64 console.

note:
Torque each the for (4) 3mm socket cap mounting screws to:

2.3 N-m 1.7 lb-ft 20.4 lb-in 23.5 Kg-cm
Reconnect all cables removed earlier to the Z820 computer.
Remove LOTO on console.

Perform a Load From Cold (LFC).

Refer to Software → Software Installation Procedures (LFC) → (13HW38.x) Load From Cold procedure

note:
When a hard disk drive, which was previously used in a RAID volume, is reused ads system or image disk, clearing the configuration information in the hard disk drive is required.

Refer to Z820 RAID Disk Clear Configuration Procedure.
Install console covers.

Refer to Replacement → Console (RIO) → Console Cover Removal and Installation Procedure.
Perform the Functional Checks → System Scanning Test instructions from the procedure list.
SSA Gen2 license needs to be recreated.

Check the new 16 digital code at CSD Home page, create new SSA Gen2 license and install the license. Refer to SSA License File Installation.
