Install Software Options by eLicense

Prerequisites

Table 3. Required conditions
Condition	Reference	Effectivity
Engineers should have completed CT E-LICENSE TRAINING (Web):	-	-
GEHC-TECH-AMOL-CT6002_CURR in GE Learning.	-	-
Customer Global Order number (GON) is available.	-	-
Engineer has access to GE intranet.	-	-

Overview

This procedure describes how to install eLicense option keys to CT systems as an alternative method of using DVD media.

note:

The following procedure may change slightly according to changes made to the eLicense website.

Obtain the Host ID of the host computer by executing the check_config command in Unix shell.
On your laptop PC, connect to the eLicense website at http://elicense.gehealthcare.com
Login with your SSO ID and password. The eLicense home page displays.

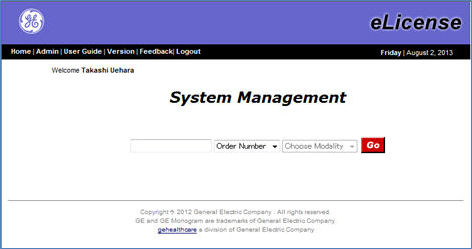

Figure 1. Login Screen
Enter the GON (Global Order Number) and click “Go”. The Order Assignment screen will be displayed.

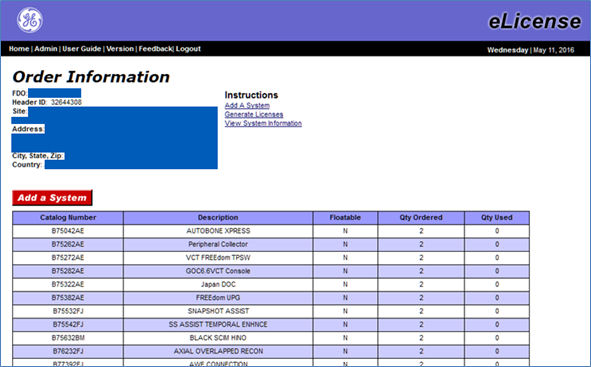

Figure 2. Order Assignment Screen

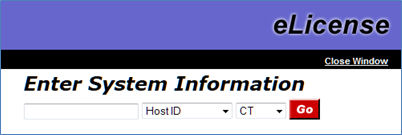

Click “Add a system” button. Enter System Information window opens. Enter Host ID and click “Go”.

Figure 3. Enter System Information Window
Enter the System ID and click “Continue” in the next screen. The new column is added with system information at the left.

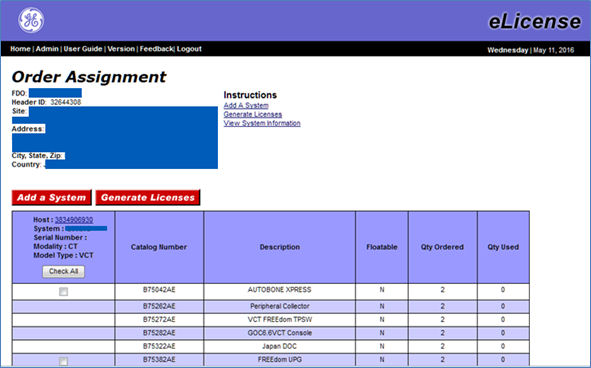

Figure 4. Order Assignment Screen with System Information
In the Order Assignment screen, click “Check All” button and “Generate Licenses” Button.

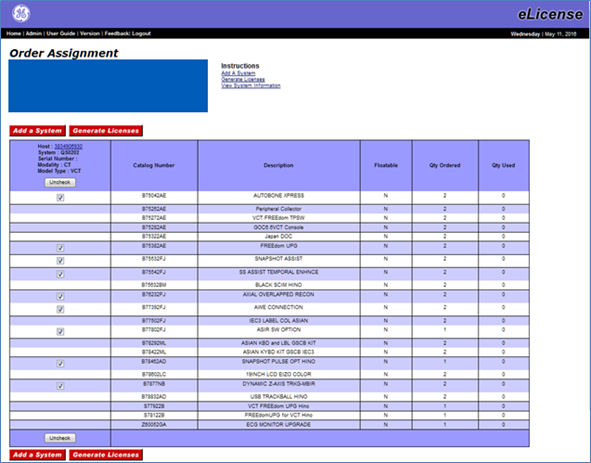

Figure 5. Generate Licenses Button on Order Assignment Screen
Confirmation screen appears. Click “Confirm Selection (s) button if the information is correct.

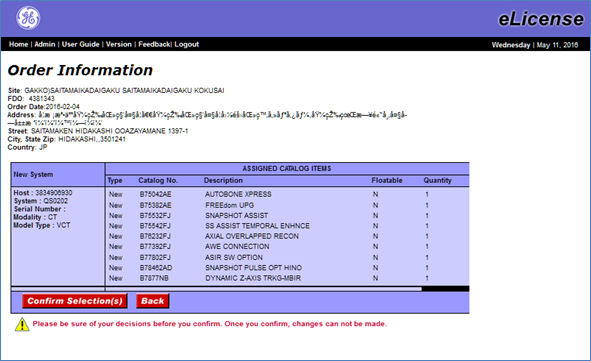

Figure 6. Confirmation Screen
If the eLicense keys are successfully generated, the check boxes are changed to key icon. Click the “Host” link.

Figure 7. Key Icon on Order Assignment Screen
Detailed eLicense information is displayed.

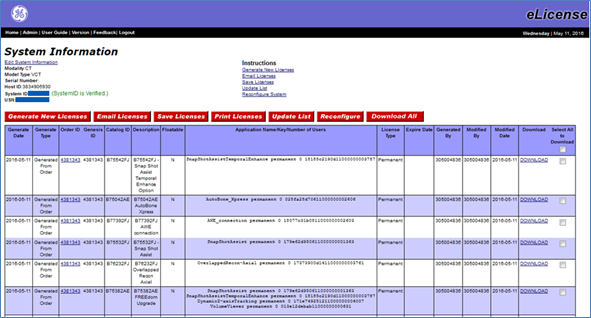

Figure 8. eLicense Information Screen
Click “Save Licenses” button. A license.dat file will be saved to your PC.

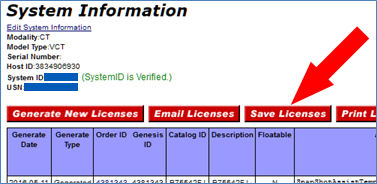

Figure 9. Save Licenses Button
Copy the license.dat file to a USB memory.

Insert the USB memory which contains the license.dat file to the console service USB port.
Open a Unix shell and type mountUSB
Type cp /USB/license.dat /usr/g/service/flex
Type unmountUSB and remove the USB memory from the service USB port.
Reboot the system.
- Option key installation will be automatically started after OS is started up.
- Some options will ask you to confirm the settings. Check or enter the appropriate parameters.
- When all eLicense keys are installed, the following pop-up message will appear.

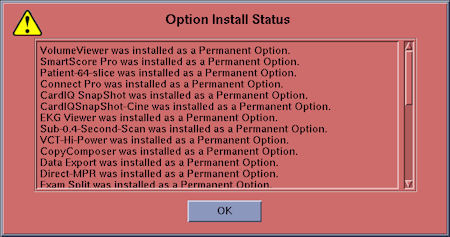

  Figure 10. Pop Up Message Window
note:
Some option key installation may fail due to dependency to other options. If failed, repeat the Step 1) through Step 5) again.

After application start up, check that all options are installed successfully by Verify Options in Common Service Desktop - Configuration tab.
