Fuse Replacement Procedures

Prerequisites

Overview

Procedure

  1. (For Removal)
    1. Make sure to follow all Lockout/Tagout requirements while performing this procedure.
    2. Replace the fuse by referring the fuse location and rating in Table 6, Table 7 and Table 8.

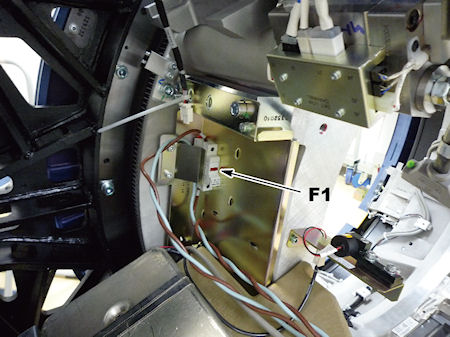

      Figure 1. Fuse - PS Filter Assembly

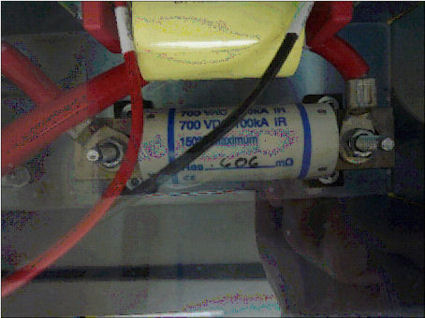

      Figure 2. Fuse - Power PAN

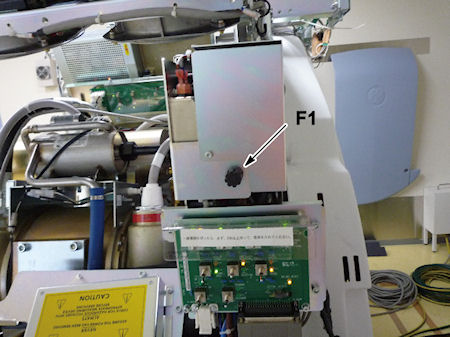

      Figure 3. Fuse - DAS 48V Power Supply AC input

    3. Remove all Lockout/tagout devices installed.
    4. Restore power to the system

Finalization

  1. Perform a [System Scanning Test] from the [Functional Checks] menu of the service manual to ensure system operation.
