Console Network Switch Replacement

Prerequisites

Overview

1 Removal Procedure

Procedure

  1. Select one of the following methods to Power OFF the Operator Console:
    1. If Applications are up, click on the Shut Down button and select Shutdown.

      The Operator Console monitor will display a 'Power Down' message when it is acceptable to power OFF the Operator Console.

    2. If Applications are down, open a Unix Shell. Type: halt.
  2. Power OFF the console at the front panel switch.

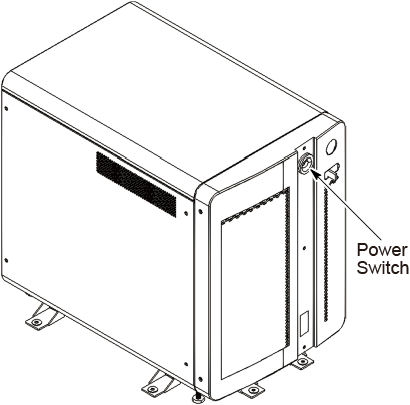

    Figure 1. Power Switch

  3. Remove the top cover.

    Refer to Replacement > Console > (Console Cover Removal and Installation Procedure).

  4. Disconnect all cable connectors from the console network switch.

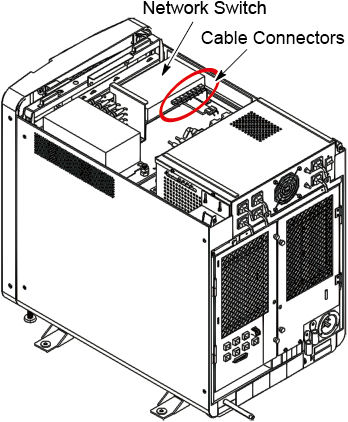

    Figure 2. Cable Connectors of Network Switch

  5. Remove the network switch from the console.

2 Installation Procedure

Procedure

  1. Attach the Velcro tape to the bottom of the new network switch.

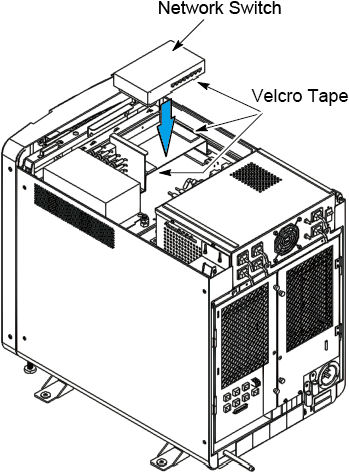

    Figure 3. Network Switch Installation

  2. Install the new network switch in place.
  3. Re-Connect all cable connectors to the network switch.

3 Finalization

Procedure

  1. Refer to System Scanning Test to confirm proper operation.
  2. Re-Install the console cover.
