ASiR-V Feature Connection

Prerequisites

1 Reference Document

Procedure

  1. Edison 1.5 HealthLink Platform Site Installation Manual (DOC2445146)
  2. Edison 1.5 HealthLink Platform Service Guide (DOC2445143)
  3. Smart Subscription ASiR-V Installation Manual. (5846180-1EN)

2 How to Check CT eth0 IP address

The CT Private IP address is necessary by CT option key install.

Procedure

  1. Open shell and type following command.

    ifconfig and press [Enter]

  2. Record the [inet adder:] of eth0.

    eth0 inet addr : ___________________

  3. Type exit and press [Enter] for close shell.

    Figure 1. Example inet addr is 172.16.0.1

3 How to Check CT Hostname

The CT Scanner Hostname is necessary by Device Registry on EHL Admin Console.

Procedure

  1. Open shell and type more /usr/g/config/INFO and press [Enter].
  2. Record the hostname (GATEWAY_HOSTNAME)

    GATEWAY_HOSTNAME : ________________________

    Figure 2. CT Hostname

  3. Type exit and press [Enter] for close the shell.

4 CT Option [SmartSubscription - ASiR-V] Install

Refer to [Software] → [Software Installation Procedure (LFC)] → [Install Software Options by eLicense] in [Optima CT660 Service Methods] for Option key Install Procedure

Procedure

  1. Install Option [SmartSubscription - ASiR-V]

5 How to set for Remote Recon enable

Procedure

  1. Open CSD and Click “Configure Remote Application” in Configuration Tab.

    Figure 3. Configure Remote Application

  2. Confirm the following window is appeared.

    Figure 4. Device Bootstrap

  3. Enter the “Edison private proxy IP (external-net1)” to EIS IP Address and click “Connect”
    note: Use the IP address recorded in the previous step.
  4. Confirm the following Message in the window.

    Status: Device Bootstrapped Successfully

    Figure 5. Message in Device Bootstrap window

  5. Close this window using click upper right corner.
  6. The following window pops up. Select “Enabled” on the “Remote Recon” selection.

    Figure 6. Attention –Connection setting for Remote Recon

  7. Then Device ID will update automatically. Click "OK" to proceed.

    Figure 7. Attention - Device ID is update

  8. Select “Enabled” to enable “Remote Recon” feature and click “Accept” to proceed.

    Figure 8. Enable Remote Recon

  9. Click “OK” to proceed.

    Figure 9. Attention Window

  10. Reboot the CT system for this option to take effect.
  11. After CT Console is rebooted, confirm following status.

    “Remote: Idle” is display in Recon status of FSA

    Figure 10. Remote Recon Status

6 Add Remote Host to Network Manager for EHL

Procedure

  1. On the Image Works Browser, click "Network Configuration" under the "Tools" sub-menu.
  2. Add the following remote hosts [EIS].

    Refer to [Check Private Proxy IP address of EHL] of [Smart Subscription ASiR-V Installation Manual about Recorded Edison private proxy IP address.

    Figure 11. Remote Host Information

7 Setting the Remote Recon Time/Zone

Procedure

  1. Open shell and type /usr/local/bin/update_dig_timezone.py "Time/Zone". Then, press [Enter].
    note:

    The “Time/Zone” should be match with the CT Console configuration

    Example: /usr/local/bin/update_dig_timezone.py "Asia/Tokyo"

    Figure 12. Time Zone

  2. Type cd /usr/local/bin and press [Enter].

    Type restart_recon_pods.py and press [Enter].

    The following status is showing during this process is running.

    Figure 13. Example: Status during process execution

  3. Type get_pods.py and press [Enter].
    1. Confirm that the all status are “Running” as shown below.

      Figure 14. Containers Status

    2. Remote Recon status will return to “Idle” when after the process is complete.

      Figure 15. Remote Recon Status

8 Finalization: System Function Check

Procedure

  1. On the Image Works Browser, click “About Remote Applications” under the “Tool Chest” sub-menu.

    Figure 16. Tool Chest - Sub-menu

  2. Confirm the Application Label of “ASiR-V” window is display.

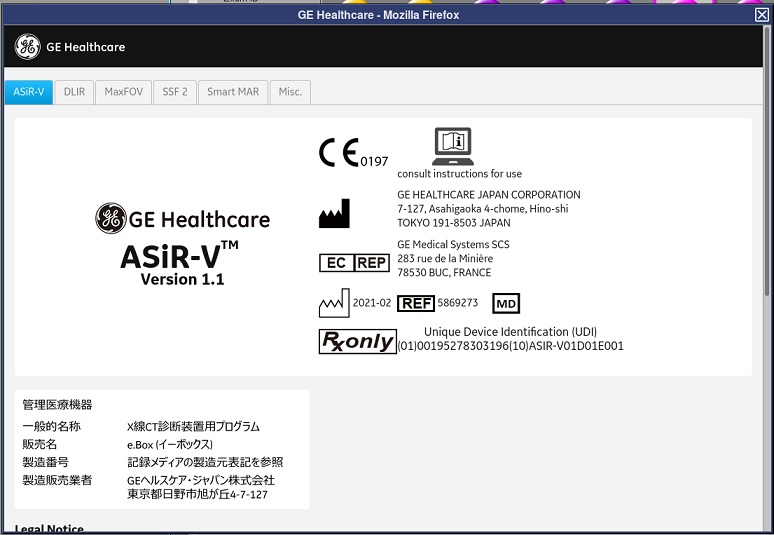

    Figure 17. Example: Application Label

  3. Record the Unique Device Identification (UDI).
    • UDI (01) : ___________________
    • UDI (10) : ___________________

    Figure 18. Example: Application Label

  4. Create New Exam using ASiR-V in PMR2 and execute the Scanning.
    Example: The "Recon Option "TAB, GUI example is shown below, and execute the Scanning.

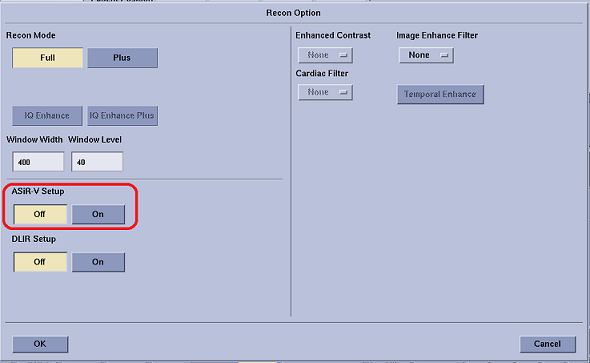

    Figure 19. Recon Option TAB on PMR2

    Figure 20. ASiR-V Setup

  5. Confirm ASiR-V images are reconstructed with no error.

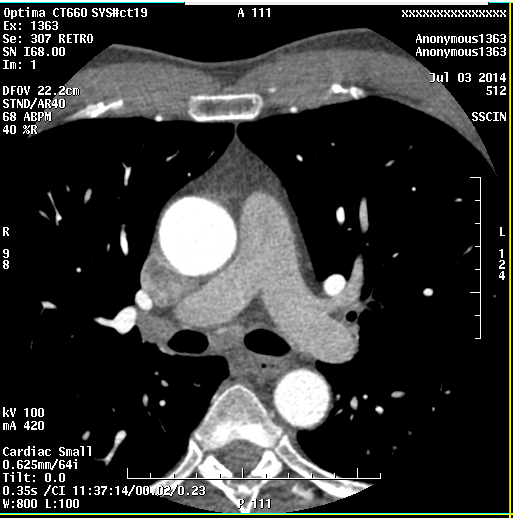

    Figure 21. Example: ASiR Setup case annotation
