Merc40 Detector Power Distribution Troubleshooting

1 Overview

This document explains Merc40 Detector Power Distribution Troubleshooting.

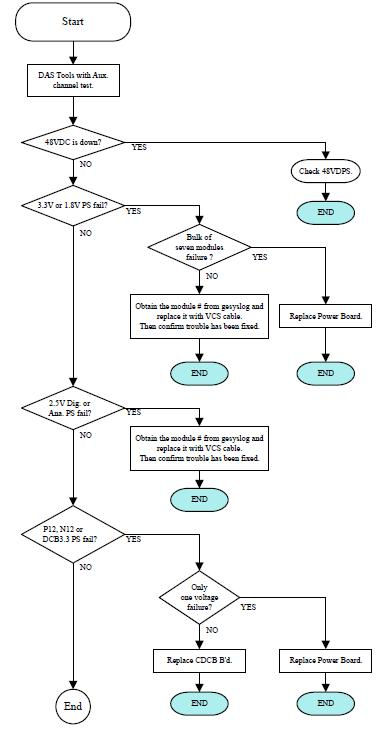

Merc40 detector uses independent communication line between CDCB and each FRDM. That means CDCB can detect each module failure separately. But Power line from Power Board uses common line and single DC-DC converter provides same power supply to multiple FRDM. This material contains troubleshooting flowchart and how to identify what part of Power distribution is defective.
