Unmount SSA key procedure

1 Overview

SSA hardware key works as USB Storage device. That means unmount process shall be done before unplug SSA key. This document explains how to unmount SSA hardware key. The procedure is different by software version.

2 Unmount Procedure Using Unmount SSA Key

The following systems provide specific tool for unmount SSA hardware key in Tool Chest as shown in Figure 1.

  • Revolution EVO and Optima CT660 with software version 14HW14.7 or later

  • LightSpeed VCT with software version 16HW36.4 or later

  1. Press the “Unmount SSA” button in Tool Chest.

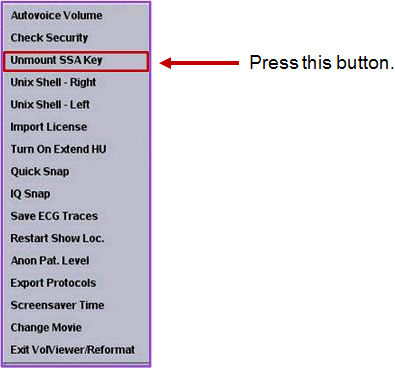

    Figure 1. Unmount SSA key menu in Tool Chest

  2. Unplug SSA hardware key after confirmation of Unmount SSA successful dialog message.

    note:

    If Blue LED of SSA hardware key is blinking after unmount operation, wait unplug operation until the blinking stops and continuous lit on.

  3. Perform “Check Security” from Tool Chest.

  4. Restart Common Service Desktop and confirm the Access Level is Non-proprietary.

3 Procedure for Optima CT660 with Software Version 13HW38.14 or earlier

  1. Open shell window and type the following command.

    $ su - <enter>

    root password

    # umount /media/SSA/

    # exit

    $ exit

  2. Unplug SSA hardware key from USB port.

    note:

    If Blue LED of SSA hardware key is blinking after unmount operation, wait until the blinking stops and continuous lit on.

  3. Perform “Check Security” from Tool Chest.

  4. Restart the Common Service Desktop and confirm the Access Level is “Non-proprietary”.

4 Troubleshooting

If you encountered the following message, exit any shells and try again.

umount: /media/SSA: device is busy
