Manually Configuring System INFO

This procedures describes the steps necessary to manually configure System INFO.

1. When the System State Install INFO decision box appears (Figure 1), click No. Then select: Hardware to access System and Console Type configuration.

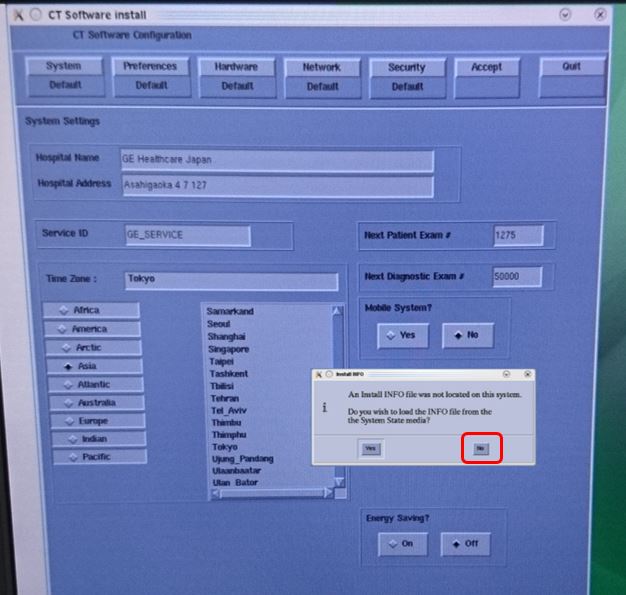

   Figure 1. Install INFO Decision Box



2. In the Hardware Configuration window, select the appropriate hardware configuration for the System, DAS and Console type. Click OK when done.

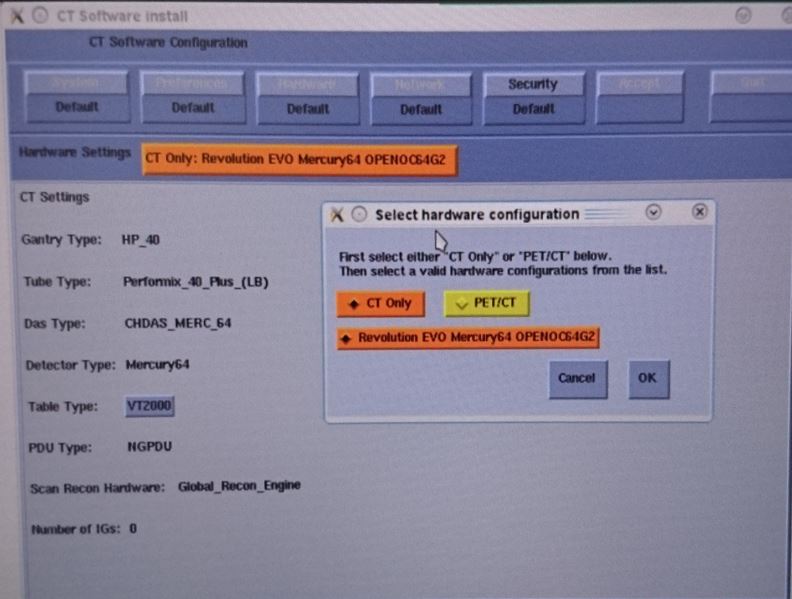

   Figure 2. Hardware Configuration Window



3. Manually configure the Preference, Hardware, and Network Settings screens as required.

   note:

   Reference the Console Information Sheet in the site log for site specific information and Align, Setup, Cals - Console - System Configuration - Revolution EVO (16HW14.x or Later) procedure in the service manual for more configuration details.

4. After manually configuring the system, click Accept and return to Applications Software Load, in the Load From Cold (LFC) procedure.

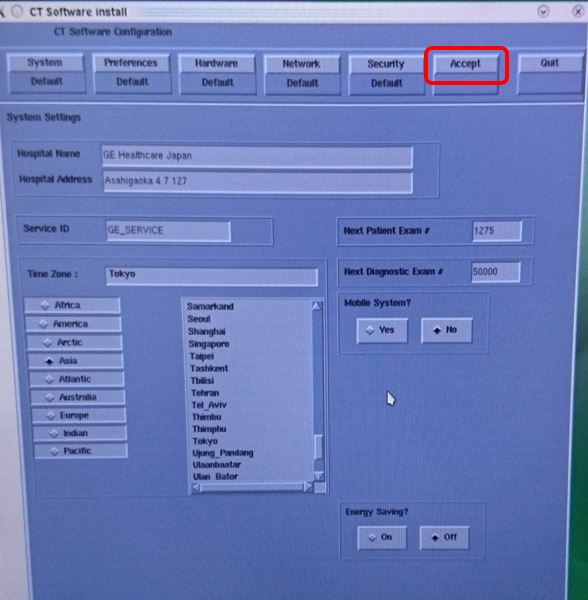

   Figure 3. System Configuration Utility - Accept Button
