Intercom Adjustments

1 Overview

The Intercom block enables communication between the console operator and the patient on the table. The communication direction through the Intercom can be switched by depressing the TALK button on the SCIM keyboard. The operator can speak to the patient by depressing the TALK button (ON). When the TALK button is released (OFF) the operator can then listen to the patient.

When Auto-voice is playing, the operator can listen through the Console speaker on the Auto-voice R channel while the TALK button is released (OFF). At the same time the patient can listen through the Table speaker on the Auto-voice L channel.

If the operator depresses the TALK button (ON) while Auto-voice is playing, the Intercom will disable the Auto-voice sound and will switch the sound source to the Console microphone output. The Console microphone output is amplified and routed to the Host computer's audio input for the Auto-voice recording. The Auto voice recording will be managed by the host computer's software. It will be up to the software to start and stop recording the sound.

2 Intercom Board Adjustments

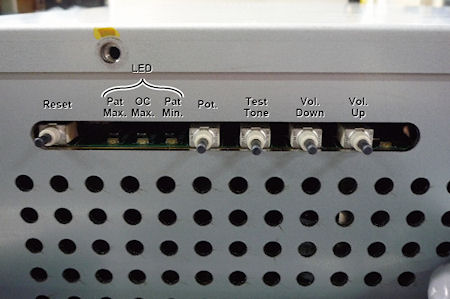

Figure 1. Intercom Board Adjustments

• Volume Adjust

  Press the Up and Down controls to adjust the selected volume.

• Test Tone Button

  Press the Test Tone button to play a test tone.

• Potentiometer Select

  Tap to cycle through the volume control potentiometers, Patient Minimum, Operator Maximum, and Patient Maximum.

• Patient Maximum

  This is the maximum volume that the patient will here in the room from the operator or from Auto Voice. Select this POT to control the volume to a level that is the loudest/highest volume the patient can receive.

• Operator Maximum

  This is the maximum volume that the operator will here from the patient or from Auto Voice. Select this POT to control the volume to a level that is the loudest/highest volume the operator can receive.

• Patient Minimum

  This is the minimum volume that the patient will here in the room from the operator or from Auto Voice. Select this POT to control the volume to a level that is the quietest/lowest volume the patient can receive.

• Reset

  Resets the volume to the factory presets.

To adjust digital potentiometers:

• Push ‘SELECT’ once to choose the patient minimum POT (the ‘PATIENT MIN’ led should illuminate). Push ‘SELECT’ again to choose the console speaker POT (the 'OPERATOR MAX' led should illuminate). Push ‘SELECT’ again to choose the patient maximum POT (the ‘PATIENT MAX’ led should illuminate). Pushing ‘SELECT’ a fourth time will deselect all POTs and turn off all leds.

• Push ‘TONE’ to generate a test tone through the selected POT channel.

• Adjust the volume louder by pushing the ‘VOLUME UP’ button, and adjust the volume softer by pushing the ‘VOLUME DN’ button.

• Push the ‘DEFAULT’ button to reset the POTs to their factory default setting.
