Tape Switch Replacement (GT1700V)

Prerequisites

Procedure

  1. Raise the Table to maximum height.
  2. Move the Cradle to OUT limit position.
  3. Remove power from Table by turning off 120VAC, Axial Drive and HVDC switches on Service Switch Panel.
  4. Remove table top cover (right/left).
  5. Cut a tie-wrap binding the connector of tape switch to the tie-wrap base.
  6. Disconnect the connector.

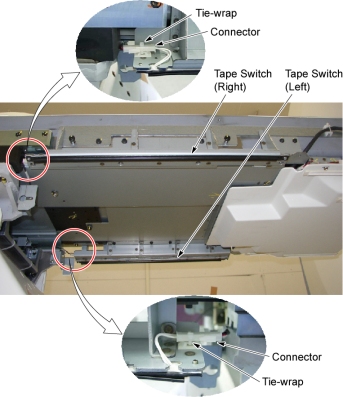

    Figure 1. Connector of Tape Switch

  7. Remove two screws holding the tape switch to the sheet metal bracket.

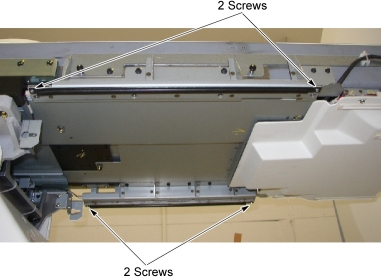

    Figure 2. Tape Switch Removal

  8. Peel off the tape switch from the sheet metal bracket, and take off the adhesive tape in that place.
  9. Clean and dirt off the attaching surface of the sheet metal bracket using an alcohol.
  10. Peel off a paper from the new tape switch, and attach it along the edge of the sheet metal bracket.

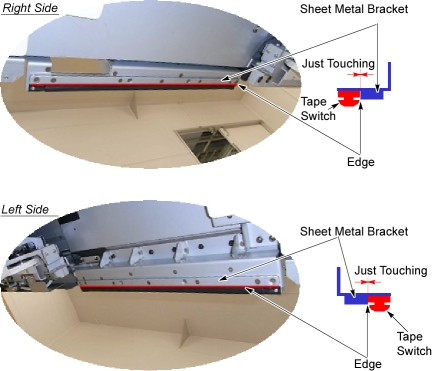

    Figure 3. Tape Switch Installation

  11. Screw the two screws to fix the tape switch.
  12. Connect the connector of tape switch, and bind the connector to the tie-wrap base using the tie-wrap.

Finalization

  1. Power up the Table from the Service Switch Panel.
  2. Verify that the tape switch function is operating normally.
  3. Turn off all 3 switches (Axial Drive, HVDC, 120VAC), and re-install the table top cover.
