Gantry Top Covers Removal and Re-Install

Prerequisites

Overview

This procedure explains how to remove and re-install the CT Gantry top covers.

1 Top Cover Removal

Procedure

    • caution
    • Potential for Shock.
    • Voltage may be present. Potential for injury if covers removed and power is left ON.
    • Always remove the right side cover first, and turn OFF power at the service switches.
  1. Remove the gantry right side cover.
  2. Stop the rotor of X-ray tube in case of Liquid Bearing Tube before HVDC off. Refer to Liquid Bearing Tube Rotor stop procedure for details.
  3. Unscrew two screws that secure the top cover with Philip top screwdriver. See Figure 1.

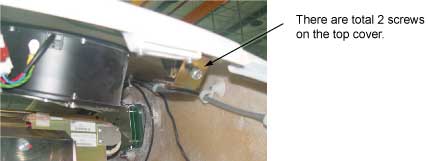

    Figure 1. Screws Securing Top Cover

  4. Take the end of the top cover nearest to the side cover and tilt upwards.
  5. Lift the cover clear and repeat the above steps for the other cover.

2 Top Cover Installation

The top cover consists of two (2) pieces. Install the front and rear gantry covers, if not already installed.

Procedure

    Notice Image
    • notice
    • Always turn ON the 120 VAC before the HVDC. Turning ON HVDC power before 120 VAC power can result in equipment damage.
  1. Turn on the three (3) power switches.
  2. Ensure fans work properly.
  3. Re-install the gantry side covers.

3 Finalization

Procedure

  1. Verify all covers, especially side covers are properly secured.
  2. Ensure there is no interference during all tile range.
